3M Products & Supplies

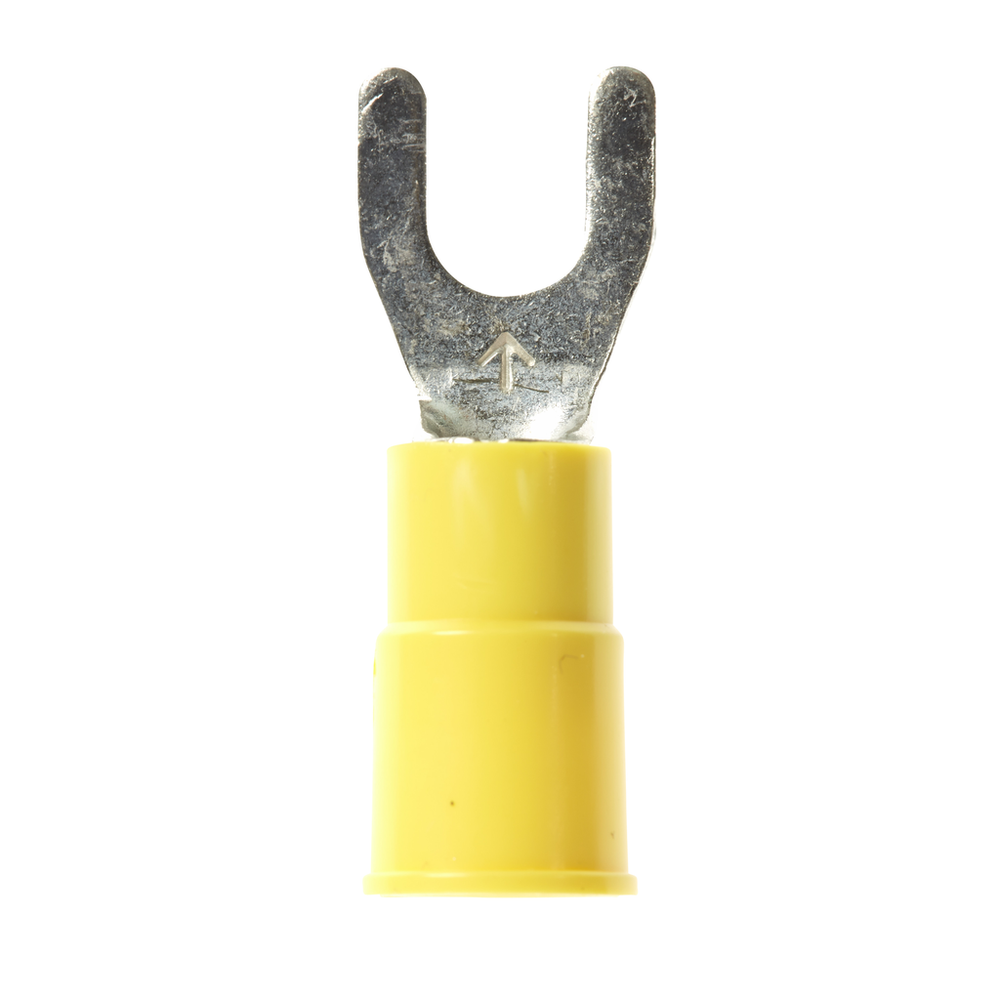

3M™ Scotchlok™ Fork Vinyl Insulated, 50/bottle, MV10-8FX, wider-tongue design for use on free-standing studs, 500/Case - 7010351173

Sold As: 50-Pack
SKU: 7010351173
MPN: 7010351173
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128587628
3M ID: 80611464084
5 Digit UPC: 58762
$48.70 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Wider-tongue design for use on free-standing studs
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Stud Size#8
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Celsius)-40 °C to 105 °C
Packaging50 per bottle
Clearance (C)0.29 Inch
Maximum Conductor Size (Metric)5.26 mm²
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)10 AWG
Terminal TypeFork
UL File NumberE23438
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Terminal StyleStandard
Barrel Inside Diameter0.135 Inch
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Maximum Insulation Outer Diameter (Imperial)0.25
Overall Length (Imperial)1.03
Barrel StyleBrazed
Overall Width (Imperial) UOMin
Dimension E0.84 Inch
Overall Width (Imperial)0.38
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case500.0
Fork TypeStandard
Insulation MaterialVinyl
