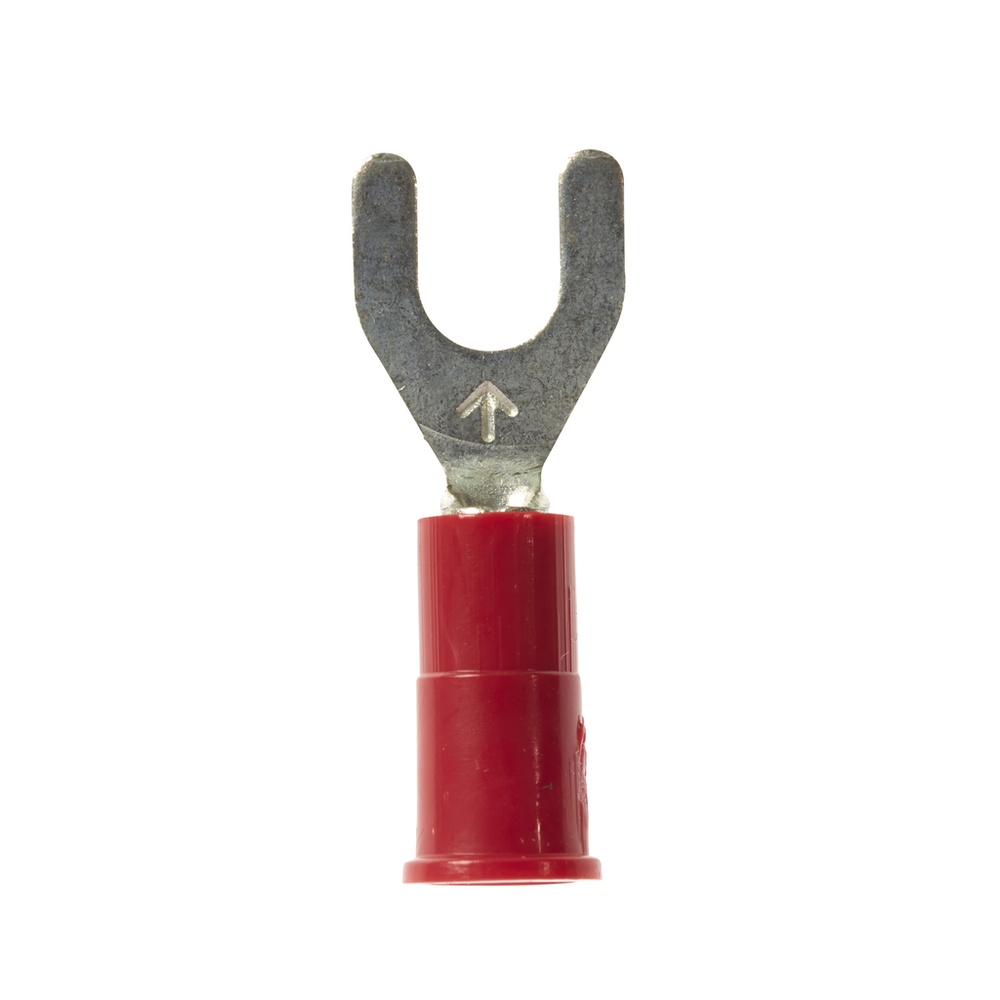

3M™ Scotchlok™ Fork Vinyl Insulated, 100/bottle, MV18-8FX, wider-tongue design for use on free-standing studs, 500/Case - 7100165248

Sold As: 500-Pack
SKU: 7100165248
MPN: 7100165248
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128587369
3M ID: 80611458813
5 Digit UPC: 58736
$383.57 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Wider-tongue design for use on free-standing studs
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Clearance (C)0.29 Inch
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Metric)0.326 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.34
Maximum Operating Temperature (Celsius)105.0
Barrel StyleBrazed
Packaging100 per bottle
Insulation MaterialVinyl
UL File NumberE23438
Maximum Operating Temperature (Fahrenheit)221.0
Stud Size#8
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dimension E0.74 Inch
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Barrel Inside Diameter0.070 Inch
Operating Temperature Range (Celsius)-40 °C to 105 °C
Fork TypeStandard
Maximum Insulation Outer Diameter (Imperial)0.145
Units per Case500.0
Overall Length (Imperial)0.9
Maximum Conductor Size (Metric).0823 mm²
Terminal TypeFork
