3M Products & Supplies

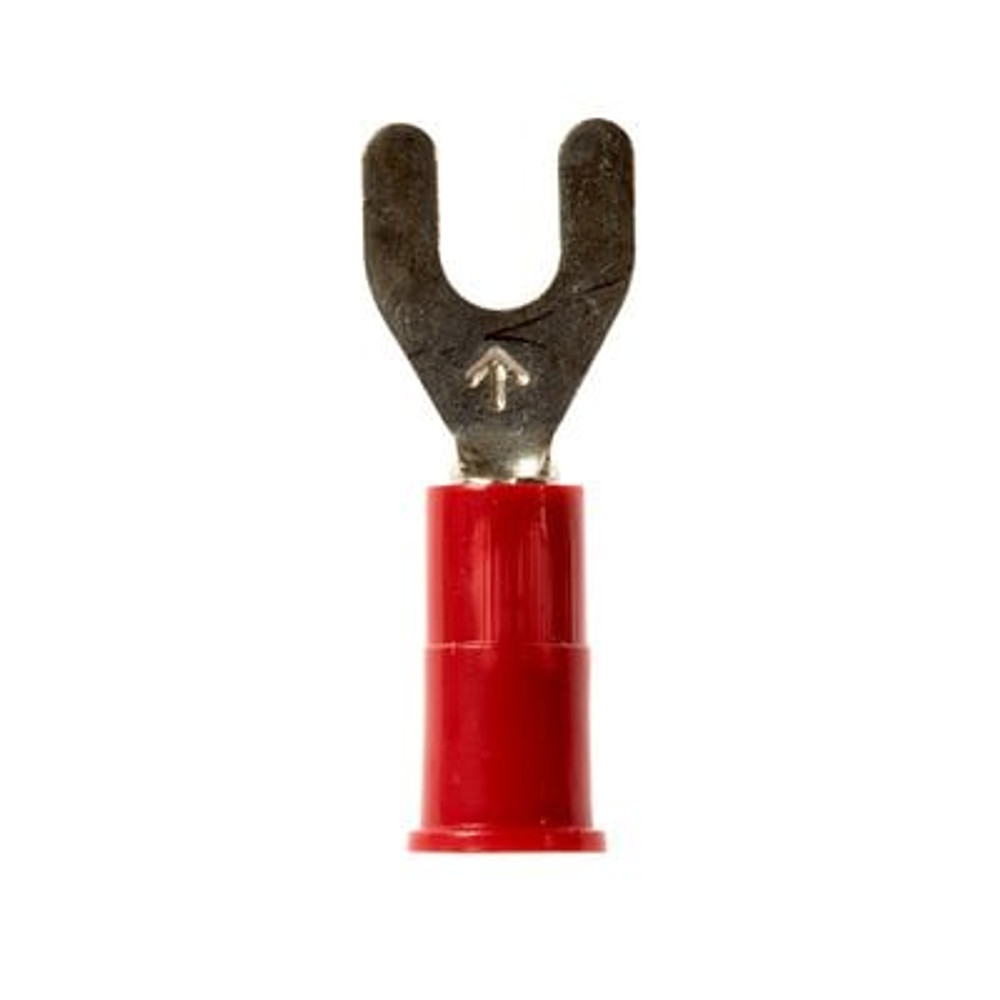

3M™ Scotchlok™ Fork Vinyl Insulated, 100/bottle, MV18-6FX, wider-tongue design for use on free-standing studs, 500/Case - 7100165247

Sold As: 500-Pack
SKU: 7100165247
MPN: 7100165247
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128587352
3M ID: 80611458805
5 Digit UPC: 58735
$383.57 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Packaging100 per bottle
Maximum Operating Temperature (Celsius)105.0
Fork TypeStandard
Dimension E0.74 Inch
Barrel Inside Diameter0.070 Inch
Barrel StyleBrazed
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Units per Case500.0
Maximum Operating Temperature (Celsius) UOMDegree
Stud Size#6
Maximum Insulation Outer Diameter (Imperial) UOMin
Clearance (C)0.29 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial)0.34
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Conductor Size (Metric).0823 mm²
Minimum Conductor Size (Metric)0.326 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.9
Insulation MaterialVinyl
Terminal TypeFork
Maximum Conductor Size (Imperial)18 AWG
Terminal StyleStandard
Operating Temperature Range (Celsius)-40 °C to 105 °C
