3M Products & Supplies

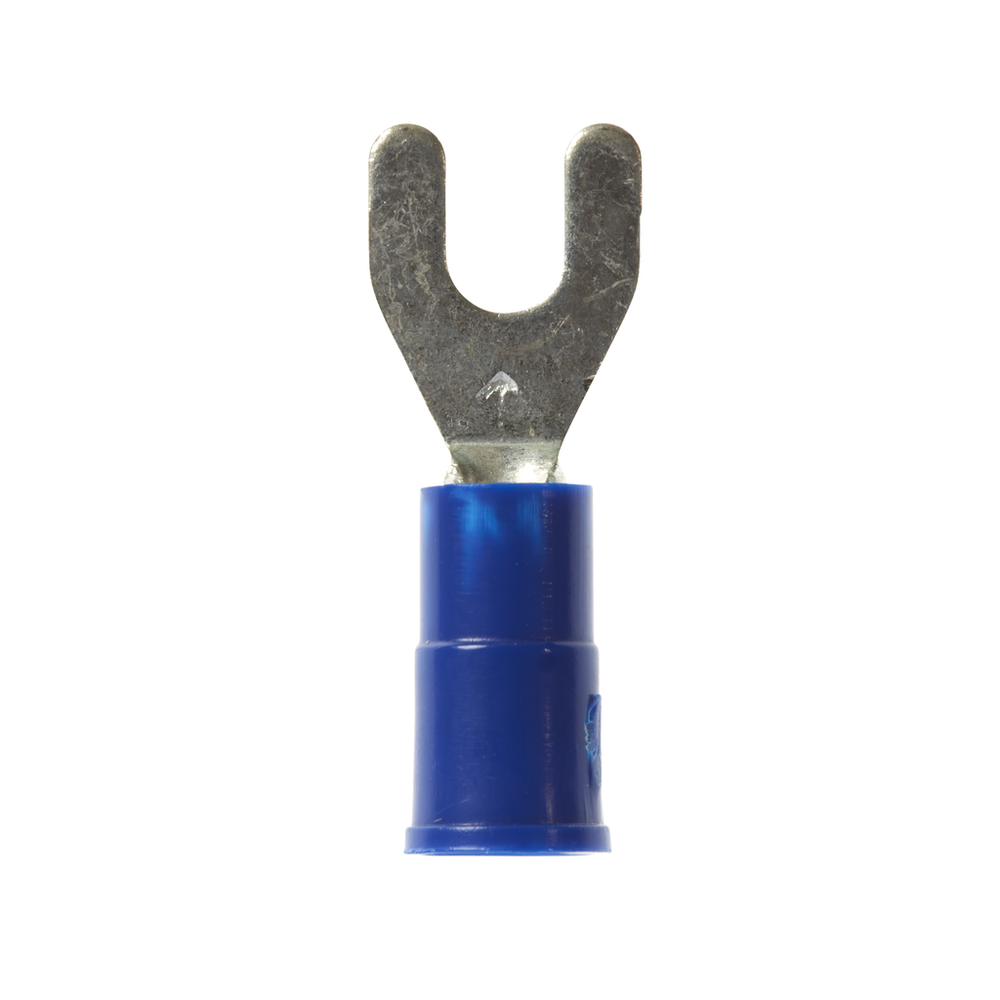

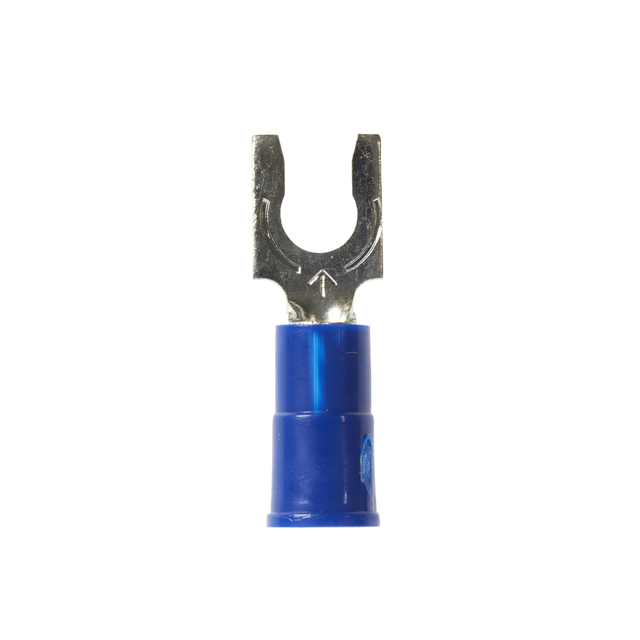

3M™ Scotchlok™ Fork Vinyl Insulated, 100/bottle, MV14-6FX, wider-tongue design for use on free-standing studs, 500/Case - 7100096610

Sold As: 500-Pack
SKU: 7100096610
MPN: 7100096610
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128587386
3M ID: 80611458839
5 Digit UPC: 58738
$383.57 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Wider-tongue design for use on free-standing studs
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Barrel StyleBrazed
Minimum Conductor Size (Imperial)18 AWG
Maximum Recommended Voltage Rating UOMV
Overall Width (Imperial)0.34
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Stud Size#6
UL File NumberE23438
Maximum Recommended Voltage Rating32.0
Terminal TypeFork
Dimension E0.74 Inch
Overall Length (Imperial)0.9
Maximum Conductor Size (Metric)2.08 mm²
Fork TypeStandard
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Inside Diameter0.090 Inch
Minimum Conductor Size (Metric)0.823 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial) UOMin
Units per Case500.0
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Terminal StyleStandard
Insulation MaterialVinyl
Maximum Operating Temperature (Fahrenheit)221.0
Packaging100 per bottle
Maximum Operating Temperature (Fahrenheit) UOMDegree
Clearance (C)0.29 Inch
