3M Products & Supplies

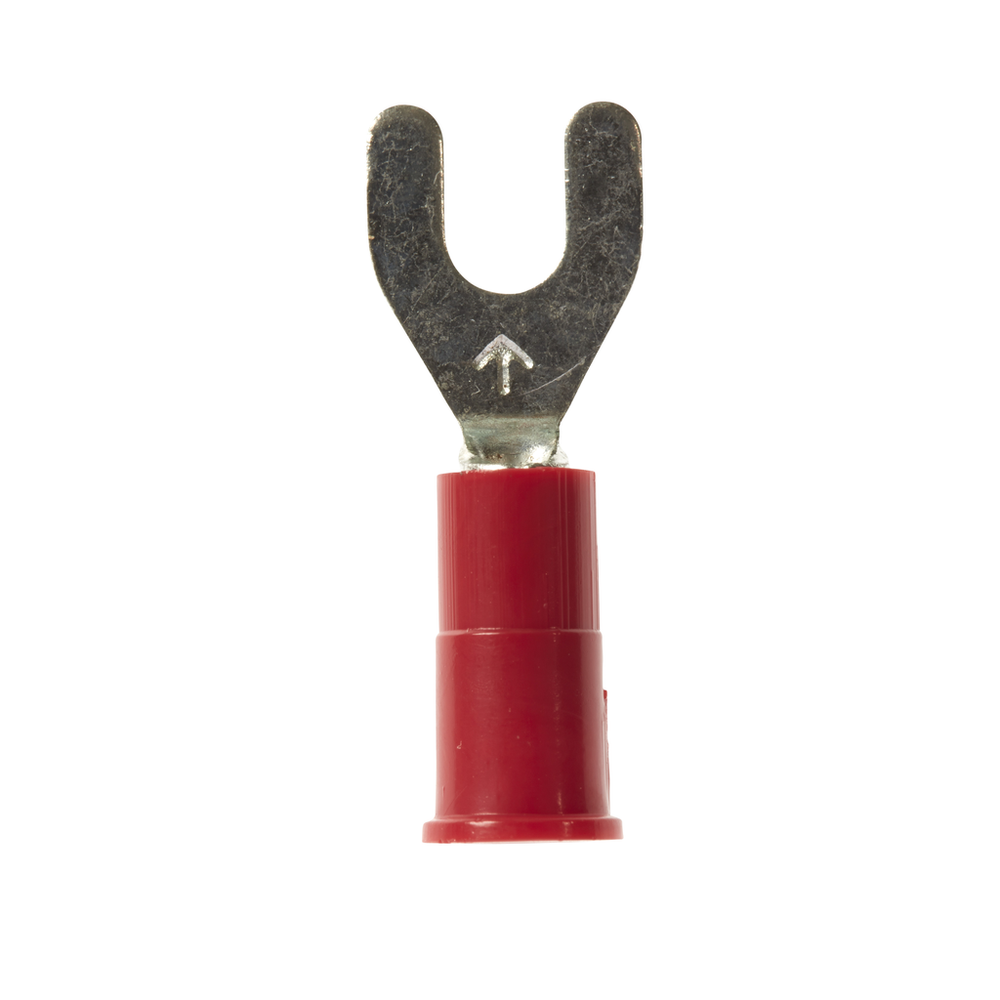

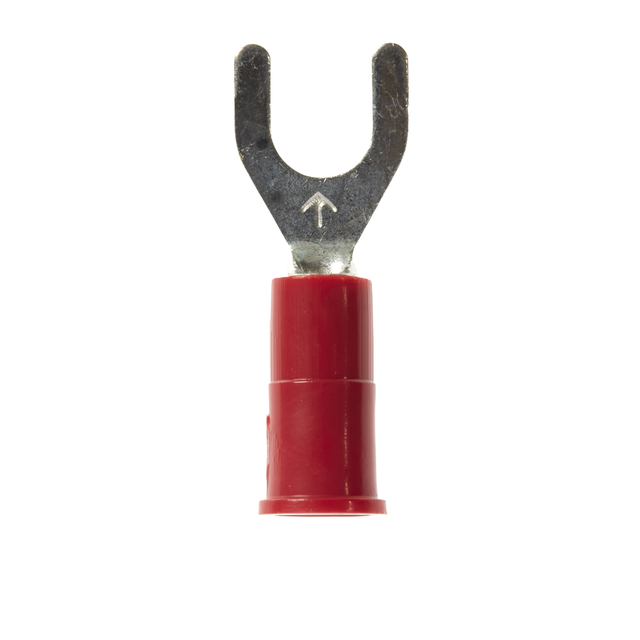

3M™ Scotchlok™ Fork Vinyl Insulated, 100/bottle, MVU18-6FX, wider-tongue design for use on free-standing studs, 500/Case - 7010351313

Sold As: 100-Pack
SKU: 7010351313
MPN: 7010351313
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128590260
3M ID: 80611466725
5 Digit UPC: 59026
$31.61 ($0.32 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
UL File NumberE70512
Minimum Conductor Size (Metric)0.326 mm²
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Units per Case500.0
Maximum Insulation Outer Diameter (Imperial)0.145
Clearance (C)0.29 Inch
Terminal StyleStandard
Barrel StyleButted
Stud Diameter (Metric)3.505
Barrel Inside Diameter0.07 Inch
Stud Diameter (Imperial)0.138
Overall Length (Imperial)0.9
Fork TypeStandard
Packaging100 per bottle
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Length (Imperial)0.25 Inch
Terminal TypeFork
Dimension E0.74 Inch
Stud Size#6
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)0.34
Maximum Conductor Size (Metric).0823 mm²
Overall Length (Imperial) UOMin
