3M Products & Supplies

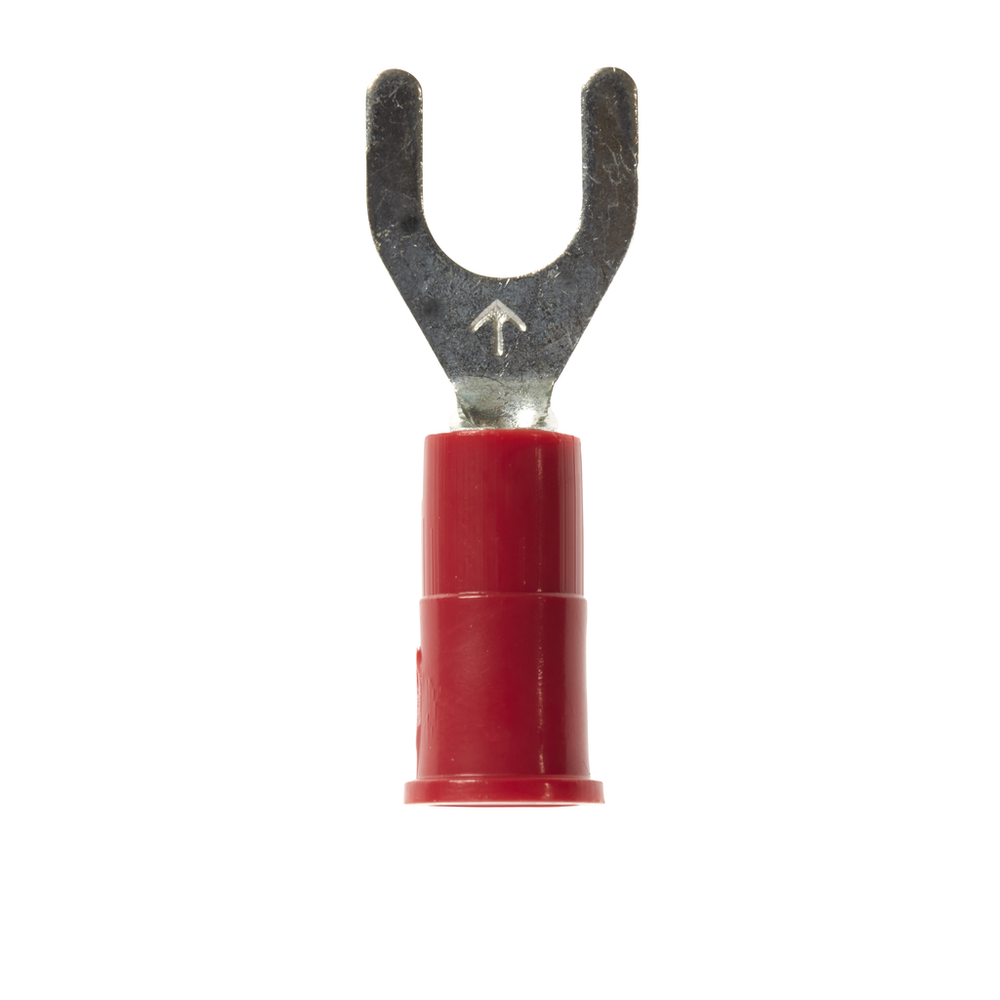

3M™ Scotchlok™ Fork Vinyl Insulated, 100/bottle, MVU18-10FX, wider-tongue design for use on free-standing studs, 500/Case - 7010398236

Sold As: 100-Pack
SKU: 7010398236
MPN: 7010398236
For an accurate lead time please contact us
UPC: 10051128590284
3M ID: 80611466741
5 Digit UPC: 59028
$36.11 ($0.36 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric).0823 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Packaging100 per bottle
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialVinyl
Stud Diameter (Metric) UOMmm
Clearance (C)0.29 Inch
Barrel Inside Diameter0.07 Inch
Dimension E0.74 Inch
Overall Length (Imperial)0.9
Overall Width (Imperial)0.34
Minimum Conductor Size (Imperial)22 AWG
Stud Diameter (Imperial)0.19
UL File NumberE70512
Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Fork TypeStandard
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleButted
Terminal TypeFork
Stud Diameter (Metric)4.826
Overall Width (Imperial) UOMin
Units per Case500.0
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Stud Size#10
