3M Products & Supplies

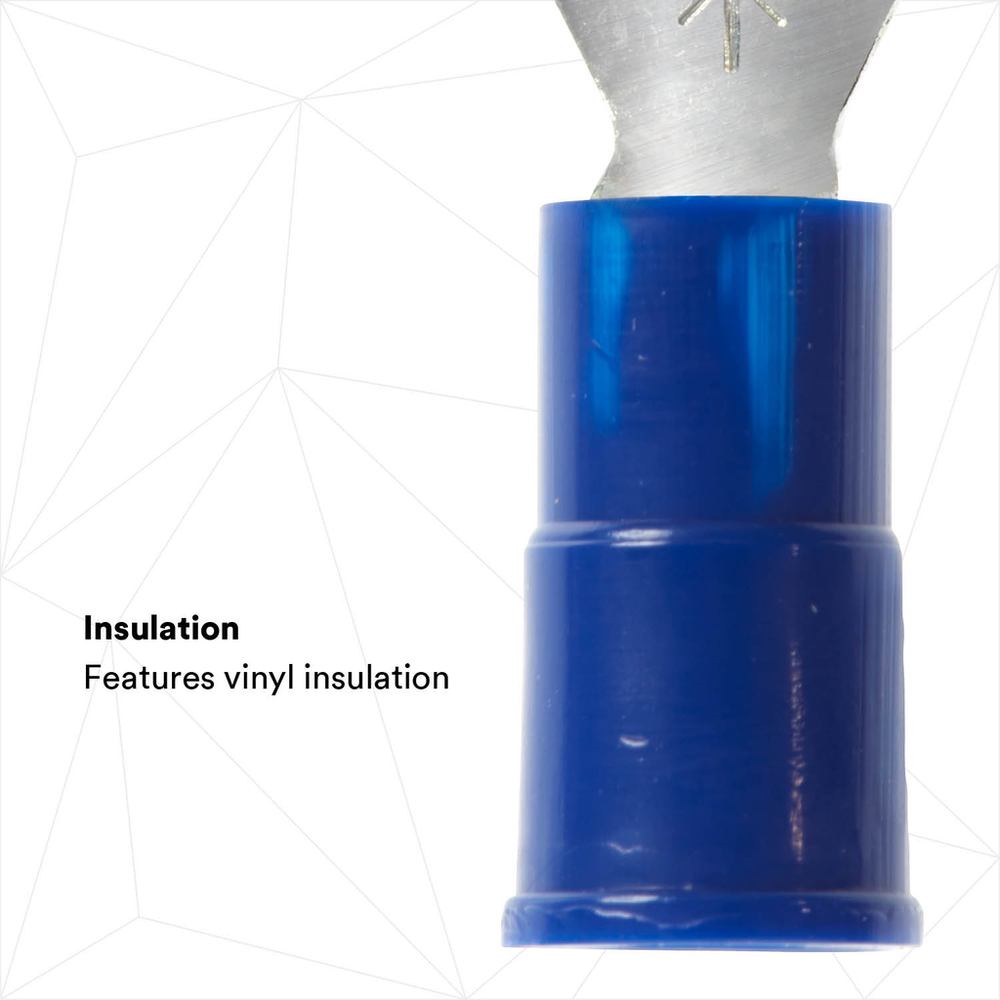

3M™ Scotchlok™ Fork Vinyl Insulated, 100/bottle, MVU14-10FX, wider-tongue design for use on free-standing studs, 500/Case - 7010398205

Sold As: 100-Pack
SKU: 7010398205
MPN: 7010398205
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588833
3M ID: 80611465297
5 Digit UPC: 58883
$30.71 ($0.31 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeFork
Fork TypeStandard
Maximum Insulation Outer Diameter (Imperial)0.17
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric) UOMmm
Stud Diameter (Imperial)0.19
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Stud Size#10
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)2.08 mm²
UL File NumberE23438
Units per Case500.0
Stud Diameter (Metric) UOMmm
Stud Diameter (Imperial) UOMin
Barrel Inside Diameter0.090 Inch
Minimum Conductor Size (Metric)1.31 mm²
Clearance (C)0.29 Inch
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleButted
Terminal StyleStandard
Packaging100 per bottle
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Stud Diameter (Metric)4.826
Dimension E0.74 Inch
Overall Length (Imperial)0.9
Maximum Insulation Outer Diameter (Metric)4.31
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.34
