3M Products & Supplies

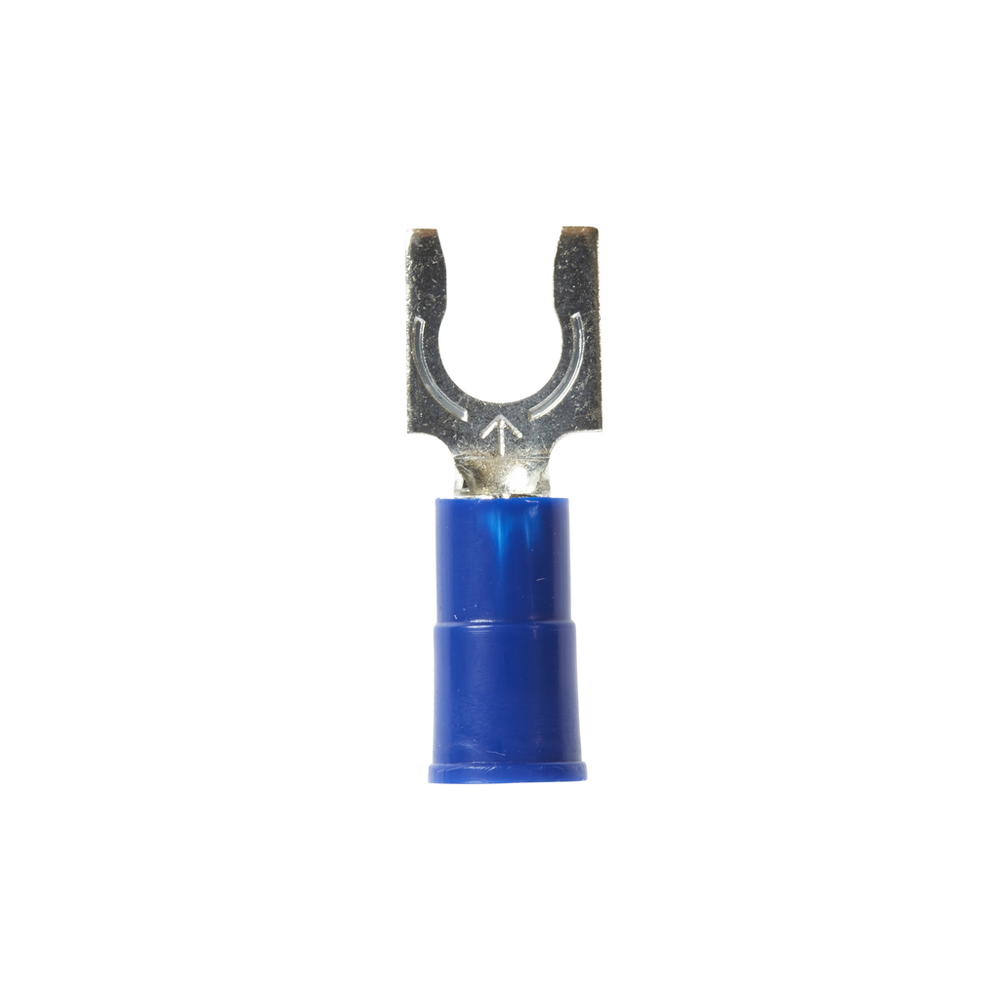

3M™ Scotchlok™ Fork Vinyl Insulated, 100/bottle, MV14-10FX, wider-tongue design for use on free-standing studs, 500/Case - 7000133321

Sold As: 100-Pack
SKU: 7000133321
MPN: 7000133321
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587423
3M ID: 80611458870
5 Digit UPC: 58742
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Wider-tongue design for use on free-standing studs
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)2.08 mm²
Maximum Operating Temperature (Celsius)105.0
Overall Width (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
Maximum Insulation Outer Diameter (Imperial)0.17
Maximum Insulation Outer Diameter (Metric) UOMmm
Units per Case500.0
Overall Length (Imperial) UOMin
Stud Size#10
Fork TypeStandard
Barrel StyleBrazed
Clearance (C)0.29 Inch
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Product ColorBlue
Terminal TypeFork
Maximum Insulation Outer Diameter (Metric)3.7
Dimension E0.74 Inch
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Imperial)0.9
Insulation MaterialVinyl
Barrel Inside Diameter0.090 Inch
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)14 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Metric)8.6
MaterialETP Copper
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Recommended Voltage Rating UOMV
Overall Width (Imperial)0.34
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Metric)22.86
UL File NumberE23438
Terminal StyleStandard
Maximum Operating Temperature (Fahrenheit)221.0
Packaging100 per bottle
