3M Products & Supplies

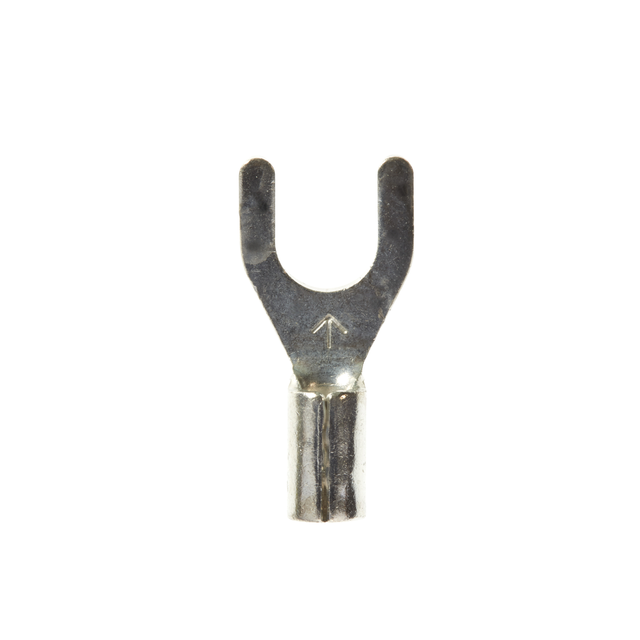

3M™ Scotchlok™ Fork, Vinyl Insulated Butted Seam MVU14-10FK, 16-14 AWG, 1000/Case - 7000132251

Sold As: 1000-Pack
SKU: 7000132251
MPN: 7000132251
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015444
3M ID: 80610042956
5 Digit UPC: 1544
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Clearance (C)0.29 Inch
Maximum Insulation Outside Diameter0.145 in
Terminal StyleStandard
Barrel Inside Diameter0.09 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Product ColorBlue
Maximum Operating Temperature (Fahrenheit)221.0
Fork TypeStandard
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Imperial)0.9
Minimum Conductor Size (Metric)1.31 mm²
Stud Size#10
Barrel StyleButted
Maximum Conductor Size (Metric)2.08 mm²
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Overall Width (Imperial)0.34
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)14 AWG
Dimension E0.74 Inch
Maximum Operating Temperature (Celsius)105.0
Barrel Length (Imperial)0.25 Inch
Maximum Recommended Voltage Rating600.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeFork
Maximum Insulation Outer Diameter (Imperial)0.17
MaterialETP Copper
UL File NumberE23438
Insulation MaterialVinyl
Units per Case1000.0
Packaging1000 per bulk box
