3M™ Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH10-14FLX, spring-like tongue firmly fits around the stud, 125/Case - 7010320783

Sold As: 125-Pack
SKU: 7010320783
MPN: 7010320783
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588939
3M ID: 80611465396
5 Digit UPC: 58893
$199.46 ($1.60 / Count)
Hurry up! Current stock:

Product Description

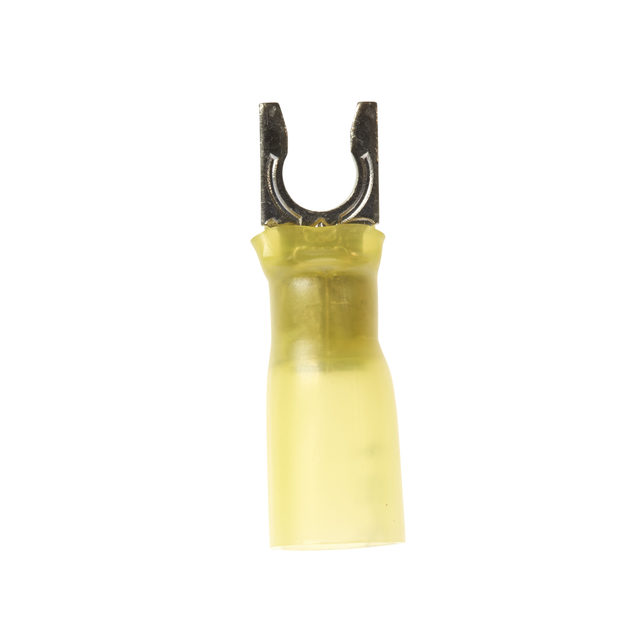

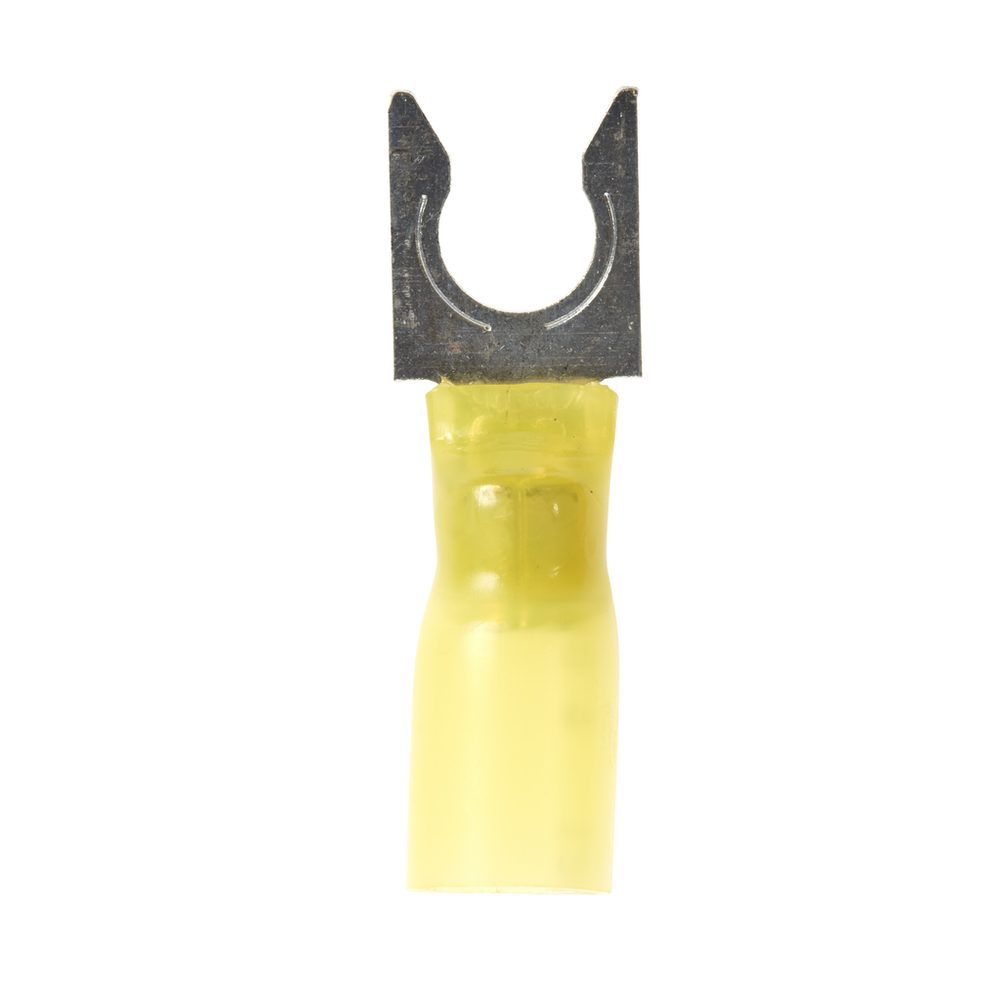

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Size1/4 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Terminal TypeFork
Fork TypeLocking
Terminal StyleLocking
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial) UOMin
Packaging25 per bottle
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.43
Clearance (C)0.30 Inch
Units per Case125.0
Overall Length (Imperial)1.2
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Metric)5.26 mm²
Barrel StyleBrazed
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dimension E0.95 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialHeat Shrink
