3M Products & Supplies

3M™ Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH10-8FLX, spring-like tongue firmly fits around the stud, 125/Case - 7100017420

Sold As: 25-Pack
SKU: 7100017420
MPN: 7100017420
For an accurate lead time please contact us
UPC: 00051128588895
3M ID: 80611465354
5 Digit UPC: 58889
$39.89 ($1.60 / Count)
Hurry up! Current stock:

Product Description

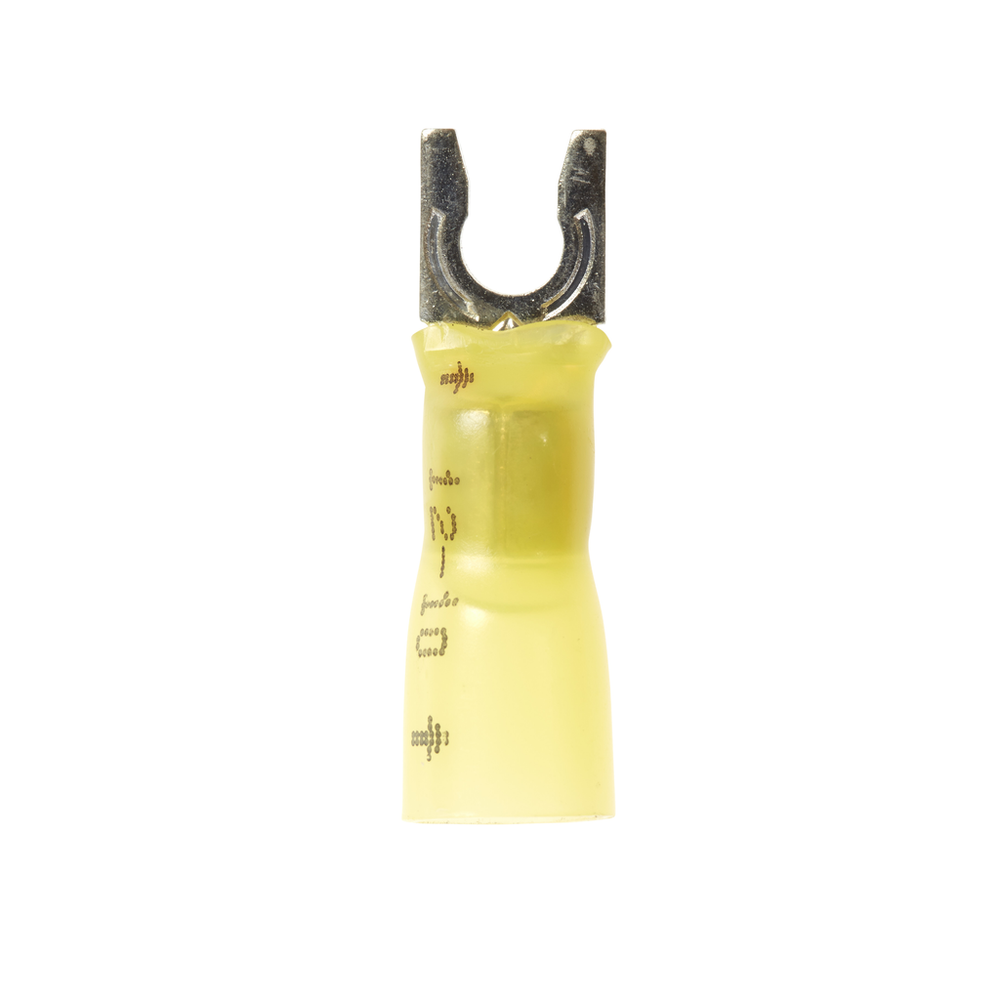

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel StyleBrazed
Terminal TypeFork
Clearance (C)0.16 Inch
Overall Width (Metric) UOMmm
Stud Size#8
Overall Width (Metric)8.128
Barrel Length (Imperial)0.80 Inch
Overall Length (Imperial)1.0
Overall Width (Imperial)0.32
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Imperial)12 AWG
MaterialETP Copper
Maximum Conductor Size (Metric)5.26 mm²
Overall Length (Metric) UOMmm
Barrel Inside Diameter0.135 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case125.0
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Terminal StyleLocking
Maximum Conductor Size (Imperial)10 AWG
Insulation MaterialHeat Shrink
Minimum Conductor Size (Metric)3.31 mm²
Fork TypeLocking
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Product ColorYellow
UL File NumberE23438
Dimension E0.80 Inch
Packaging25 per bottle
Overall Length (Metric)25.4
Maximum Operating Temperature (Fahrenheit)221.0
