3M Products & Supplies

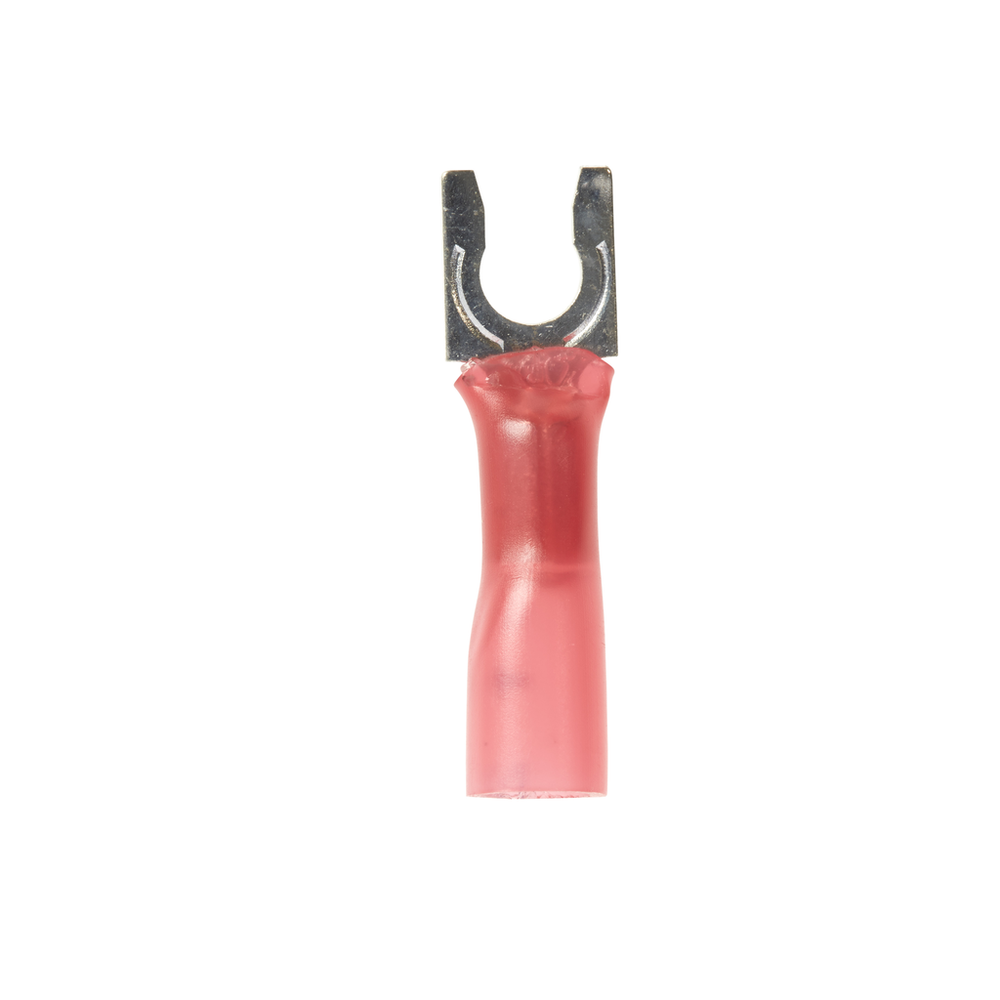

3M™ Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH18-8FLX, spring-like tongue firmly fits around the stud, 125/Case - 7010398254

Sold As: 125-Pack
SKU: 7010398254
MPN: 7010398254
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128590963
3M ID: 80611467558
5 Digit UPC: 59096
$206.02 ($1.65 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric).0823 mm²
Maximum Conductor Size (Imperial)18 AWG
Terminal TypeFork
Packaging25 per bottle
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)1.0
Maximum Operating Temperature (Fahrenheit)221.0
Stud Size#8
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Inside Diameter0.070 Inch
Units per Case125.0
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Insulation MaterialHeat Shrink
Clearance (C)0.15 Inch
Barrel StyleBrazed
Terminal StyleLocking
Fork TypeLocking
UL File NumberE23438
Dimension E0.70 Inch
