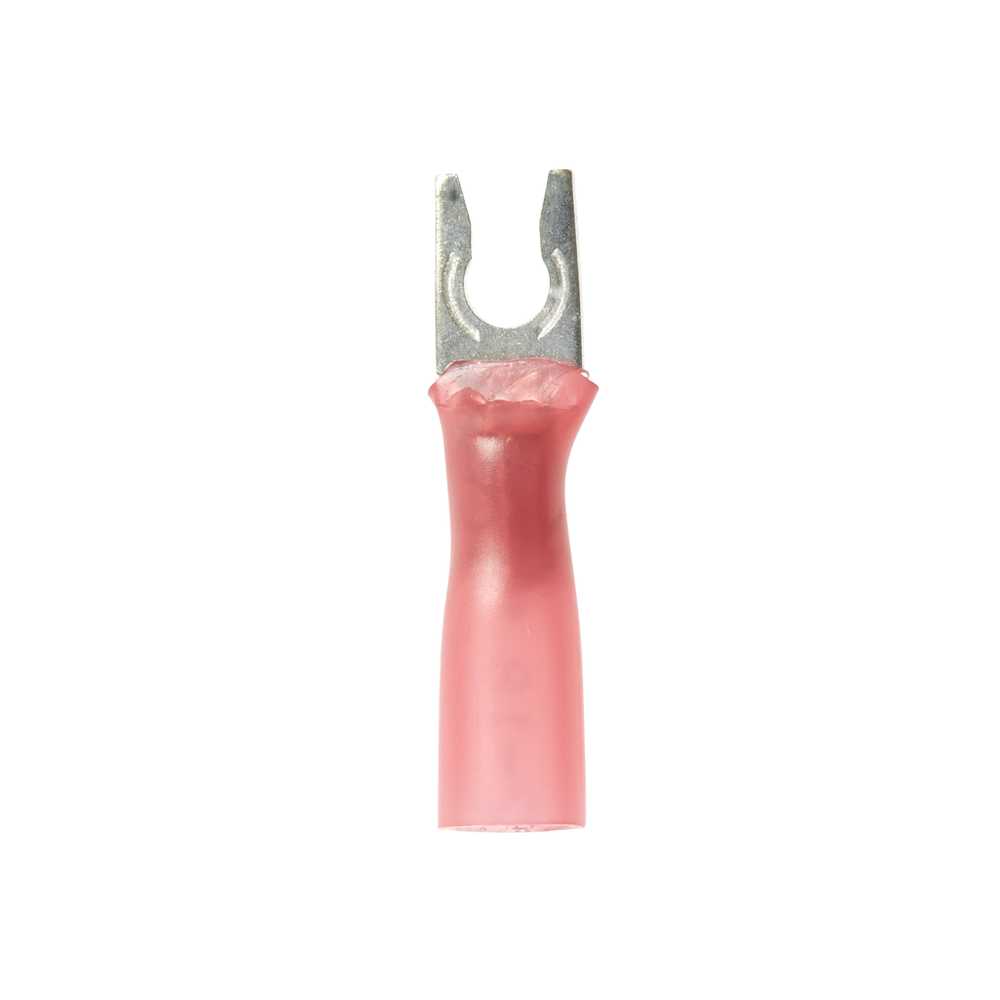

3M™ Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH18-6FLX, spring-like tongue firmly fits around the stud, 125/Case - 7000133394

Sold As: 25-Pack
SKU: 7000133394
MPN: 7000133394
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589113
3M ID: 80611465578
5 Digit UPC: 58911
$30.90 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Clearance (C)0.15 Inch
Overall Length (Imperial) UOMin
Maximum Insulation Outside Diameter0.145 in
Barrel StyleBrazed
Minimum Conductor Size (Metric)0.823 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.25
Terminal StyleLocking
Maximum Operating Temperature (Celsius)105.0
Overall Length (Metric)25.4
Overall Width (Metric)6.09
Maximum Conductor Size (Imperial)18 AWG
Fork TypeLocking
Overall Length (Metric) UOMmm
Overall Width (Imperial) UOMin
Units per Case125.0
UL File NumberE23438
Product ColorRed
Stud Size#6
Minimum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Recommended Voltage Rating600.0
Maximum Insulation Outer Diameter (Metric) UOMmm
MaterialPlastic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Recommended Voltage Rating UOMV
Barrel Length (Imperial)0.76 Inch
Insulation MaterialHeat Shrink
Barrel Inside Diameter0.070 Inch
Dimension E0.76 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Metric).0823 mm²
Packaging25 per bottle
Overall Length (Imperial)1.0
Terminal TypeFork
Overall Width (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
