3M™ Scotchlok™ Locking Fork Non-Insulated, 100/bottle, M14-10FLX, spring-like tongue firmly fits around the stud, 500/Case - 7100165266

Sold As: 500-Pack
SKU: 7100165266
MPN: 7100165266
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128588406
3M ID: 80611464860
5 Digit UPC: 58840
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

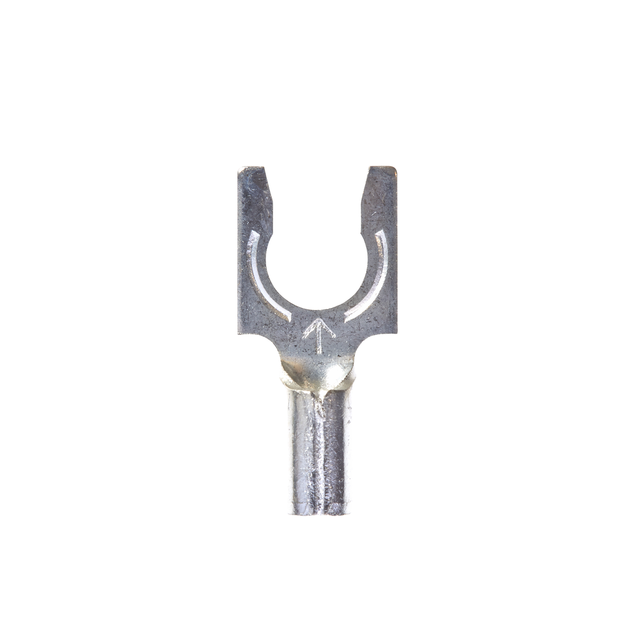

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Spring-like tongue firmly fits around the stud
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Terminal StyleLocking
Units per Case500.0
Maximum Conductor Size (Imperial)14 AWG
Dimension E0.50 Inch
Stud Size#10
Barrel Inside Diameter0.090 Inch
Barrel StyleBrazed
Clearance (C)0.25 Inch
Overall Width (Imperial) UOMin
Packaging100 per bottle
Overall Length (Imperial)0.68
Maximum Lock Width0.35 Inch
UL File NumberE23438
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial)0.32
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)1.31 mm²
Maximum Conductor Size (Metric)2.08 mm²
Fork TypeLocking
Insulation MaterialNon-insulated
Terminal TypeFork
