3M Products & Supplies

3M™ Scotchlok™ Locking Fork Vinyl Insulated, 100/bottle, MV14-10FLX, spring-like tongue firmly fits around the stud, 500/Case - 7000133368

Sold As: 100-Pack
SKU: 7000133368
MPN: 7000133368
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588376
3M ID: 80611464837
5 Digit UPC: 58837
$77.32 ($0.77 / Count)
Hurry up! Current stock:

Product Description

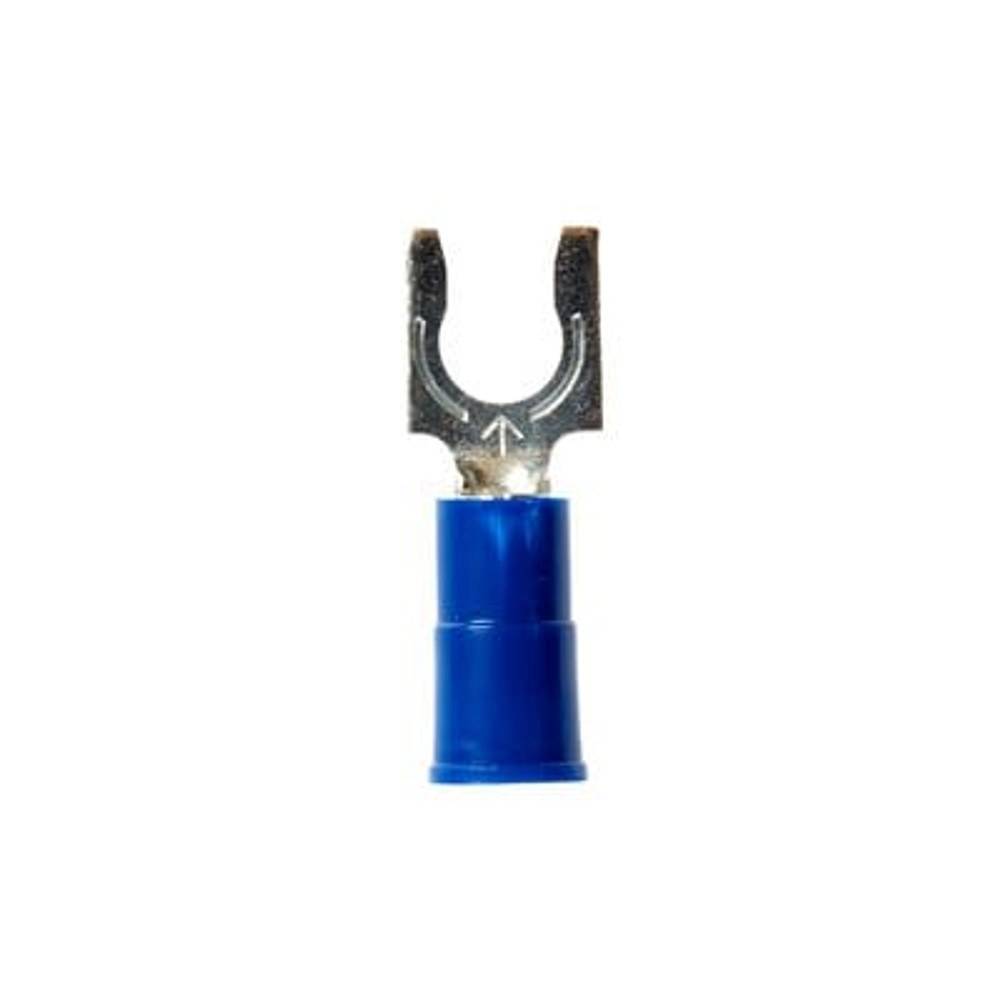

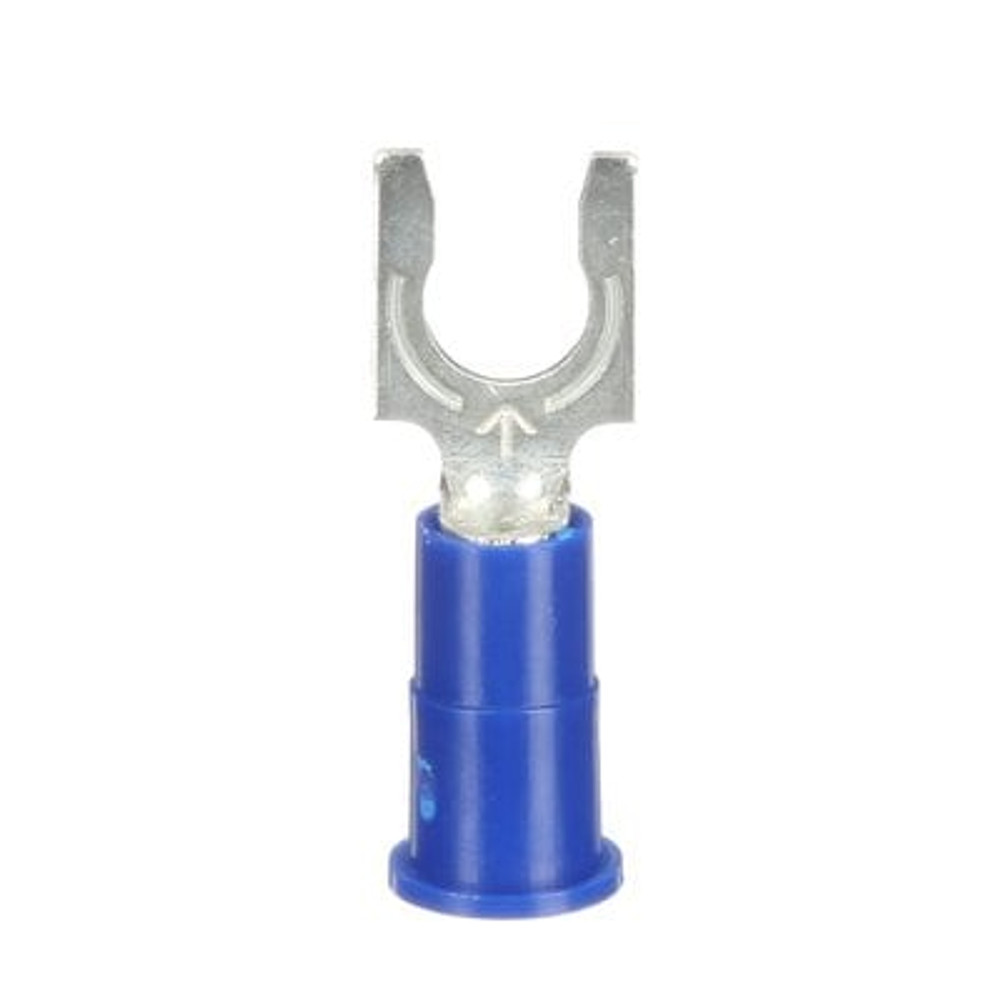

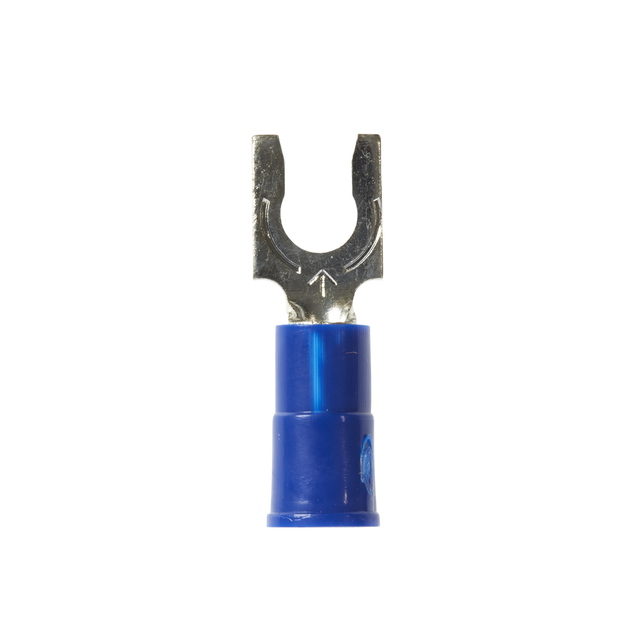

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud

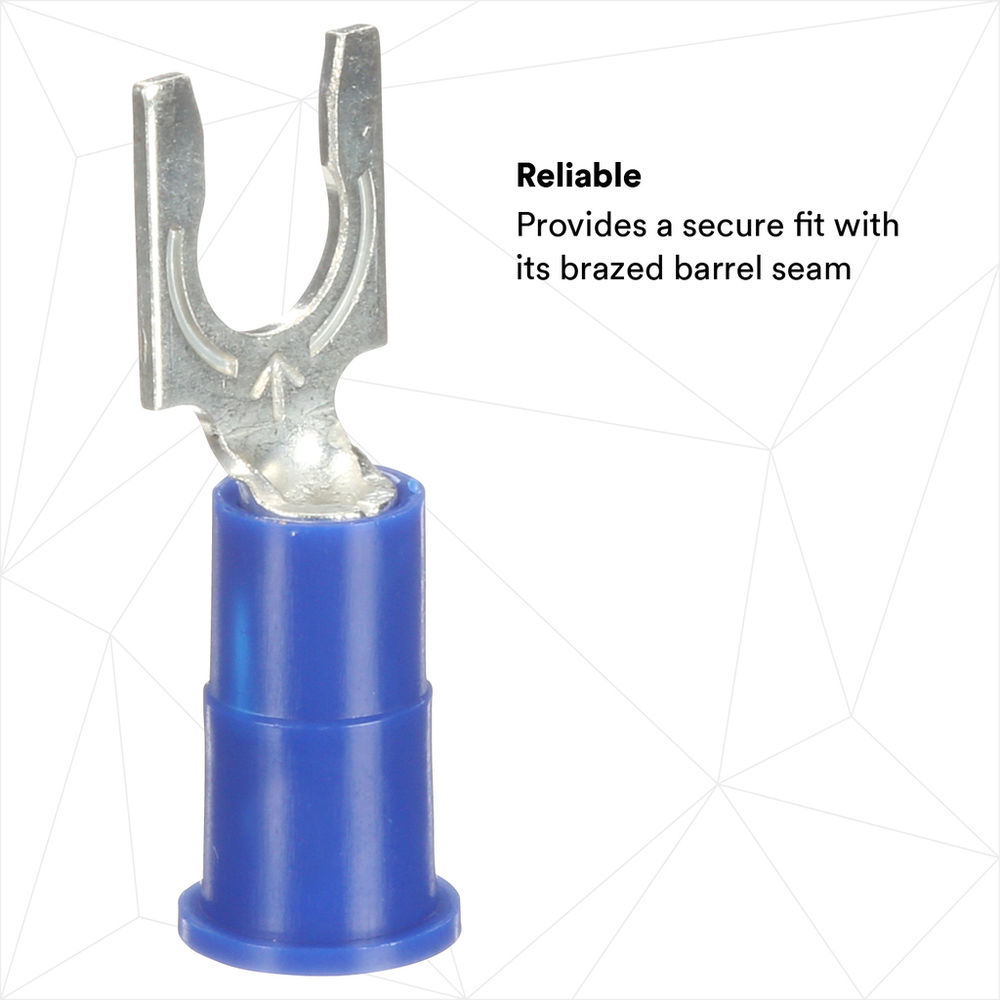

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

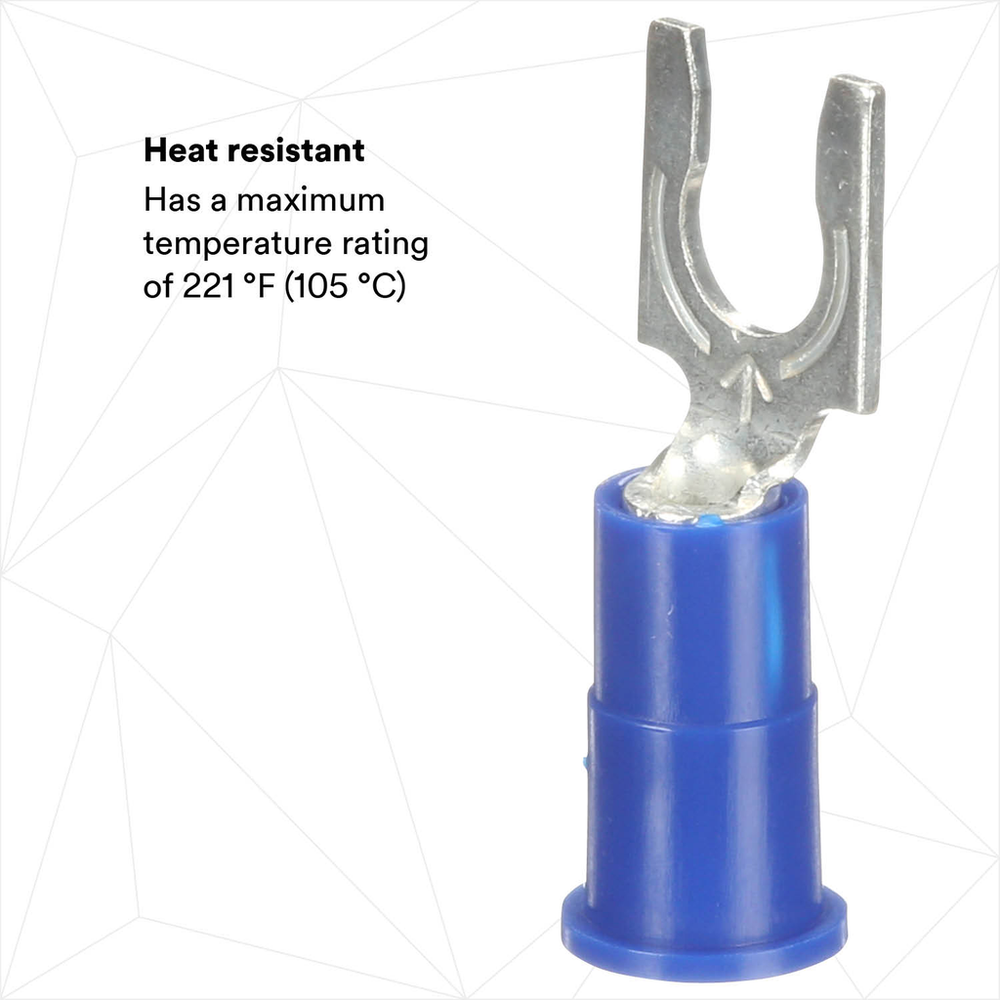

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
Maximum Conductor Size (Metric)2.08 mm²
Maximum Insulation Outer Diameter (Metric)3.7
MaterialPlastic
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Overall Width (Metric) UOMmm
Barrel StyleBrazed
Stud Size#10
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
Barrel Inside Diameter0.090 Inch
Maximum Insulation Outer Diameter (Imperial)0.17
Terminal StyleLocking
Overall Length (Metric)22.35
Maximum Lock Width0.35 Inch
Maximum Recommended Voltage Rating600.0

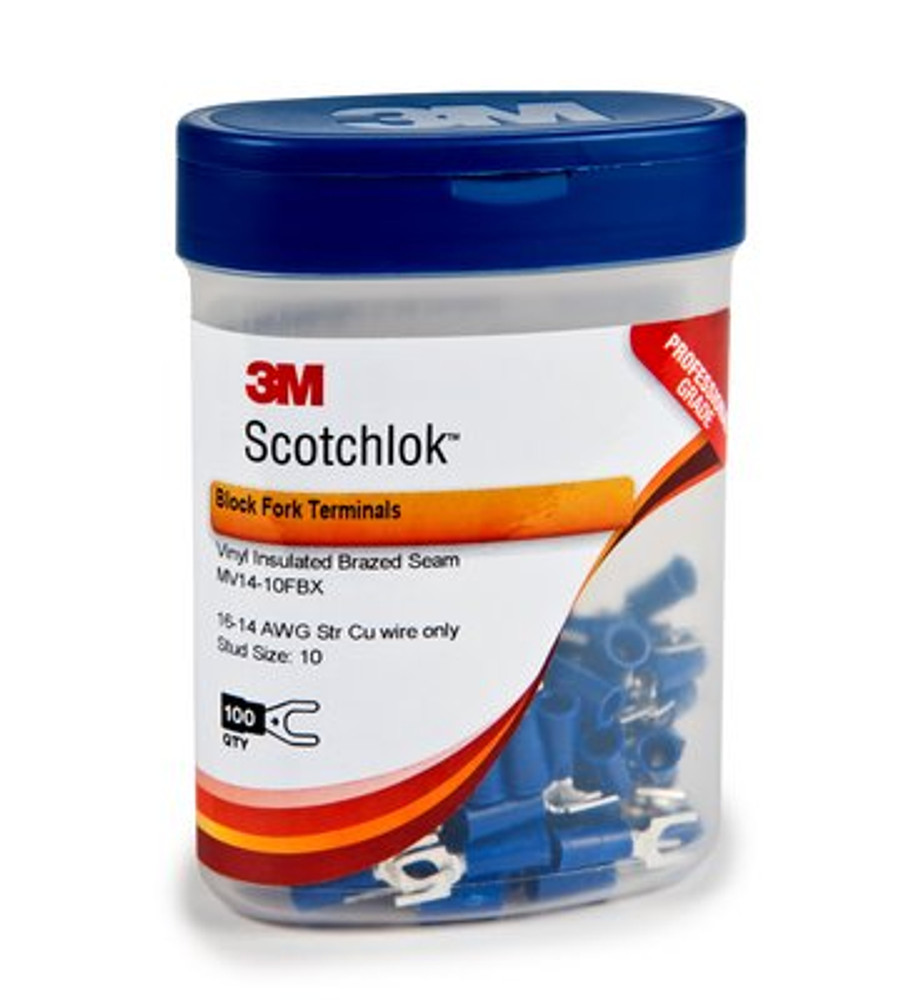

Packaging100 per bottle
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Diameter (Metric) UOMmm
Stud Diameter (Imperial)0.19685
Clearance (C)0.25 Inch
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial)0.32
Terminal TypeFork
Maximum Insulation Outer Diameter (Imperial) UOMin
Units per Case500.0
Stud Sizes#10
Fork TypeLocking
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Metric)8.12
Maximum Recommended Voltage Rating UOMV
Overall Width (Imperial) UOMin
UL File NumberE23438
Product ColorBlue
Stud Diameter (Metric)5.0
Overall Length (Imperial)0.88
Maximum Insulation Outside Diameter0.145 in
Maximum Conductor Size (Imperial)14 AWG
Dimension E0.70 Inch
Stud Diameter (Imperial) UOMin
Overall Length (Imperial) UOMin
