3M Products & Supplies

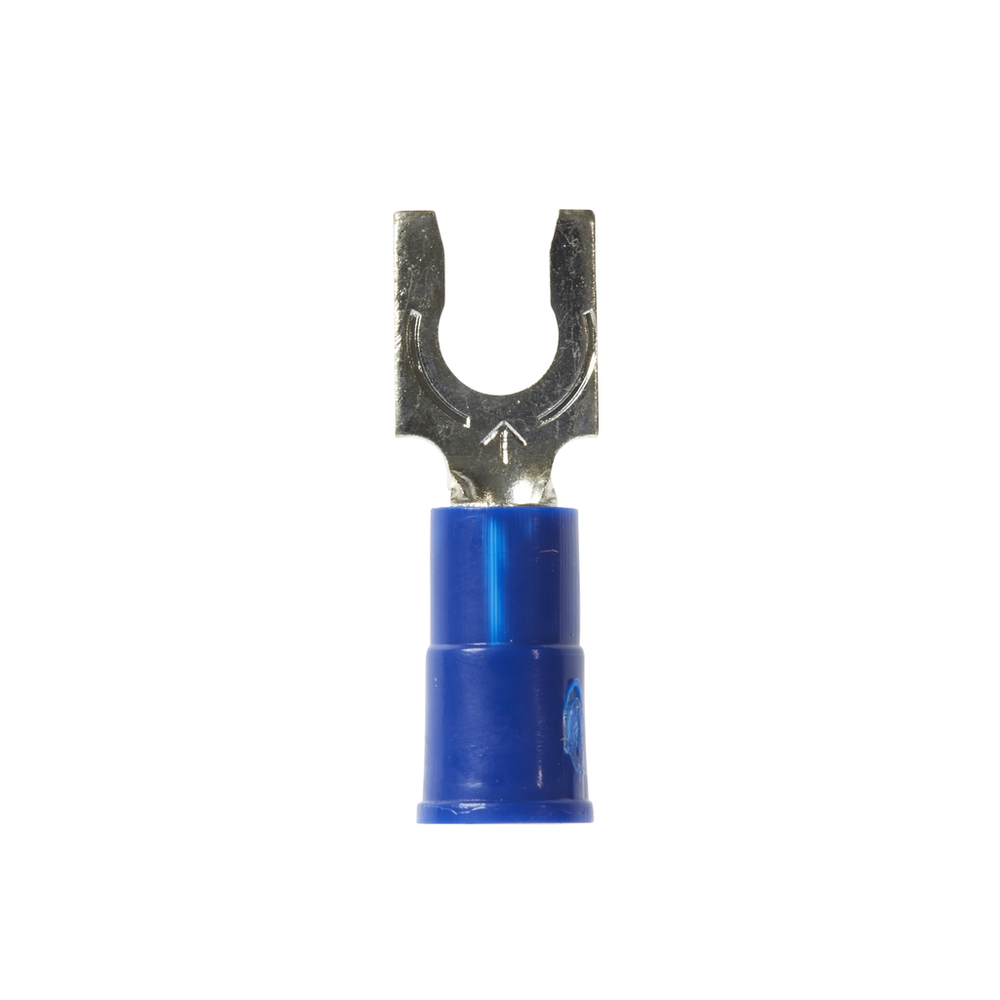

3M™ Scotchlok™ Locking Fork Vinyl Insulated, 100/bottle, MV14-8FLX, spring-like tongue firmly fits around the stud, 500/Case - 7010351287

Sold As: 100-Pack
SKU: 7010351287
MPN: 7010351287
For an accurate lead time please contact us
UPC: 00051128588369
3M ID: 80611464829
5 Digit UPC: 58836
$77.32 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • Spring-like tongue firmly fits around the stud

Downloads

Specifications

Country of OriginUnited States
Terminal TypeFork
Maximum Insulation Outer Diameter (Imperial)0.17
Clearance (C)0.25 Inch
Maximum Conductor Size (Metric)2.08 mm²
Terminal StyleLocking
Minimum Conductor Size (Imperial)16 AWG
Insulation MaterialVinyl
Dimension E0.70 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMin
Barrel Inside Diameter0.090 Inch
Fork TypeLocking
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)1.31 mm²
UL File NumberE23438
Maximum Lock Width0.34 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Packaging100 per bottle
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleBrazed
Stud Size#8
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial) UOMin
Overall Length (Imperial)0.88
Overall Width (Imperial)0.3
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case500.0
