3M Products & Supplies

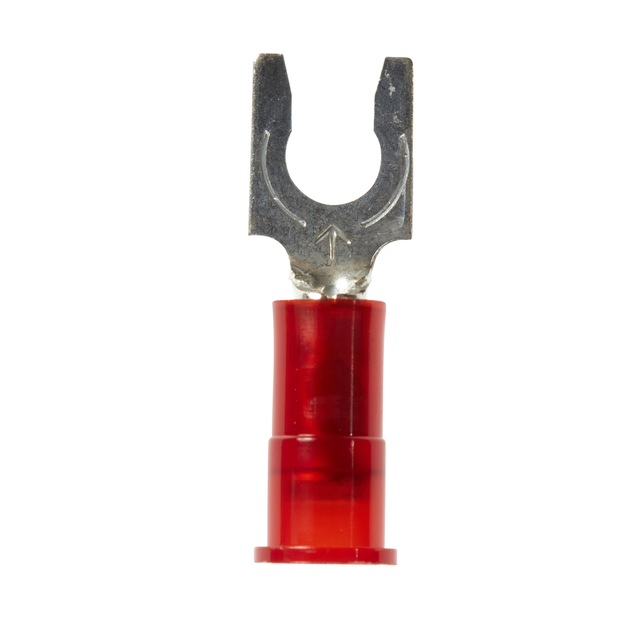

3M™ Scotchlok™ Locking Fork Vinyl Insulated, 100/bottle, MV18-8FLX, spring-like tongue firmly fits around the stud, 500/Case - 7010398197

Sold As: 100-Pack
SKU: 7010398197
MPN: 7010398197
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588472
3M ID: 80611464936
5 Digit UPC: 58847
$77.32 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)18 AWG
Packaging100 per bottle
Terminal TypeFork
Maximum Operating Temperature (Celsius)105.0
Maximum Insulation Outer Diameter (Imperial)0.145
Terminal StyleLocking
Fork TypeLocking
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.3
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Dimension E0.70 Inch
Barrel Inside Diameter0.070 Inch
UL File NumberE23438
Minimum Conductor Size (Metric)0.326 mm²
Insulation MaterialVinyl
Overall Length (Imperial)0.88
Units per Case500.0
Stud Size#8
Maximum Conductor Size (Metric).0823 mm²
Minimum Conductor Size (Imperial)22 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Lock Width0.34 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Clearance (C)0.25 Inch
Barrel StyleBrazed
Maximum Insulation Outer Diameter (Imperial) UOMin
