3M Products & Supplies

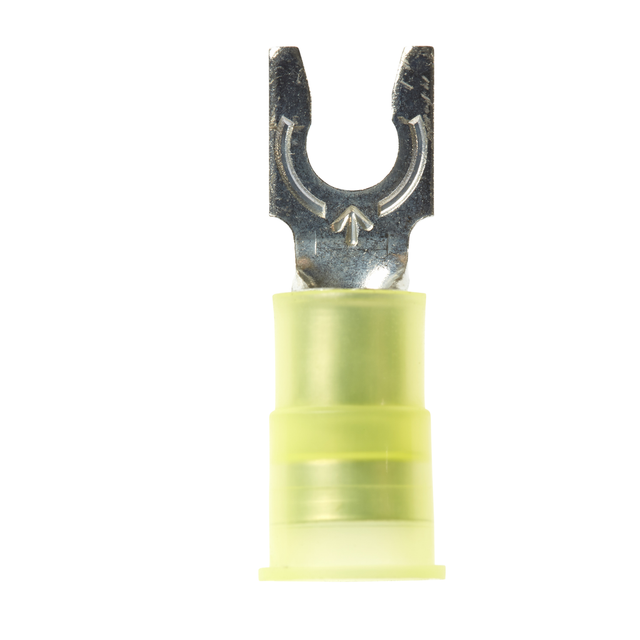

3M™ Scotchlok™ Locking Fork Nylon Insulated, 100/bottle, MNG18-8FLX, spring-like tongue firmly fits around the stud, 500/Case - 7010398187

Sold As: 100-Pack
SKU: 7010398187
MPN: 7010398187
For an accurate lead time please contact us
UPC: 10051128588052
3M ID: 80611464514
5 Digit UPC: 58805
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)22 AWG
UL File NumberE23438
Stud Diameter (Metric) UOMmm
Overall Width (Imperial)0.3
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Terminal StyleLocking
Insulation MaterialNylon with Insulation Grip
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dimension E0.69 Inch
Maximum Lock Width0.34 Inch
Maximum Conductor Size (Metric).0823 mm²
Barrel Inside Diameter0.070 Inch
Stud Diameter (Imperial)0.164
Maximum Conductor Size (Imperial)18 AWG
Stud Size#8
Stud Diameter (Metric)4.166
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial)0.145
Packaging100 per bottle
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Imperial) UOMin
Fork TypeLocking
Overall Length (Imperial)0.87
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Clearance (C)0.25 Inch
Units per Case500.0
