3M™ Scotchlok™ Locking Fork Nylon Insulated, 100/bottle, MNG18-6FLX, spring-like tongue firmly fits around the stud, 500/Case - 7100057498

Sold As: 100-Pack
SKU: 7100057498
MPN: 7100057498
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588048
3M ID: 80611464506
5 Digit UPC: 58804
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

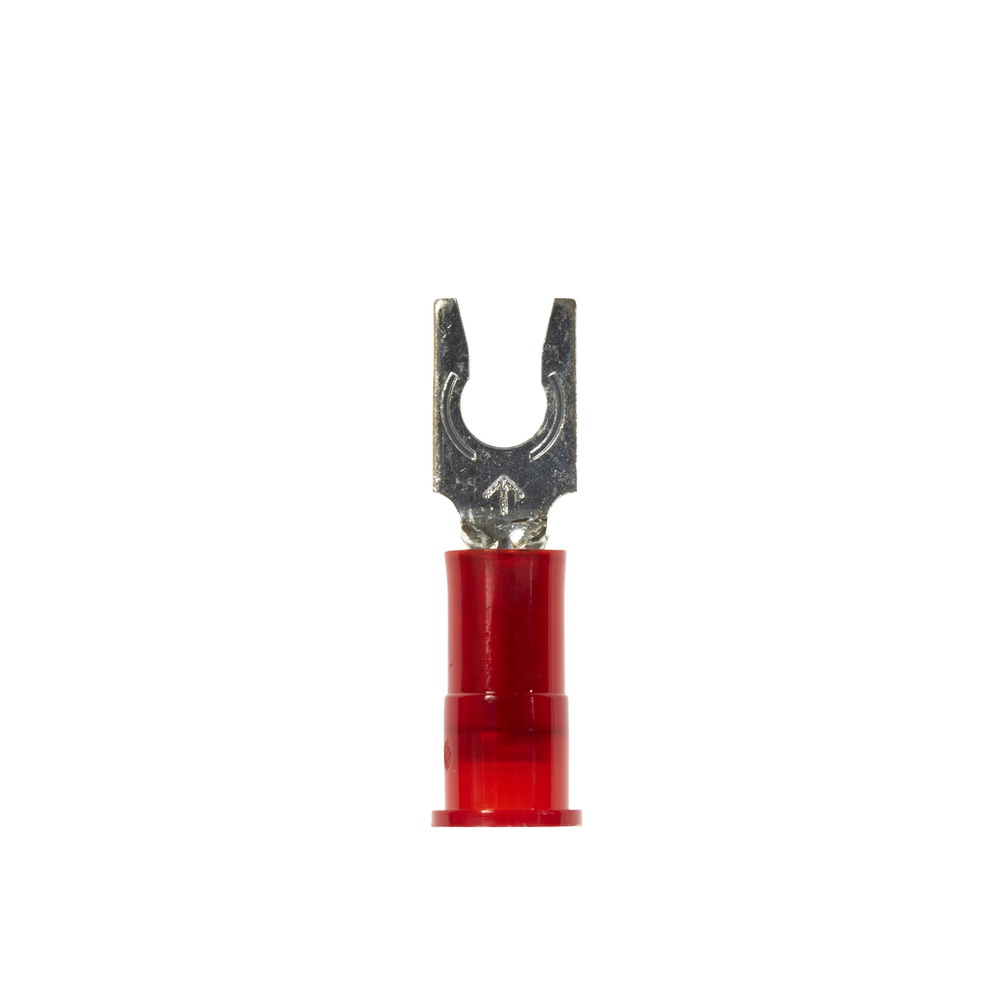

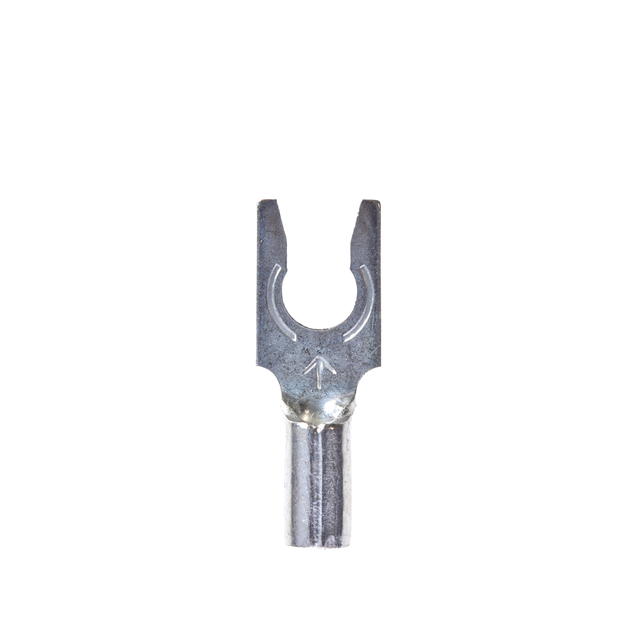

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Minimum Conductor Size (Imperial)22 AWG
Units per Case500.0
Maximum Conductor Size (Imperial)18 AWG
Product ColorRed
Barrel Inside Diameter0.070 Inch
Overall Width (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNylon with Insulation Grip
Stud Diameter (Imperial)0.138
Overall Length (Metric)22.098
UL File NumberE23438
Stud Diameter (Metric)3.505
Clearance (C)0.25 Inch
Overall Width (Imperial)0.25
Overall Length (Imperial)0.87
Overall Length (Imperial) UOMin
Dimension E0.69 Inch
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Barrel StyleButted
Maximum Conductor Size (Metric).0823 mm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Insulation Outer Diameter (Imperial)0.145
Terminal StyleLocking
Maximum Operating Temperature (Celsius) UOMDegree
Packaging100 per bottle
Maximum Operating Temperature (Fahrenheit)221.0
Stud Size#6
Maximum Lock Width0.27 Inch
Overall Length (Metric) UOMmm
Overall Width (Imperial) UOMin
Fork TypeLocking
Stud Diameter (Metric) UOMmm
