3M Products & Supplies

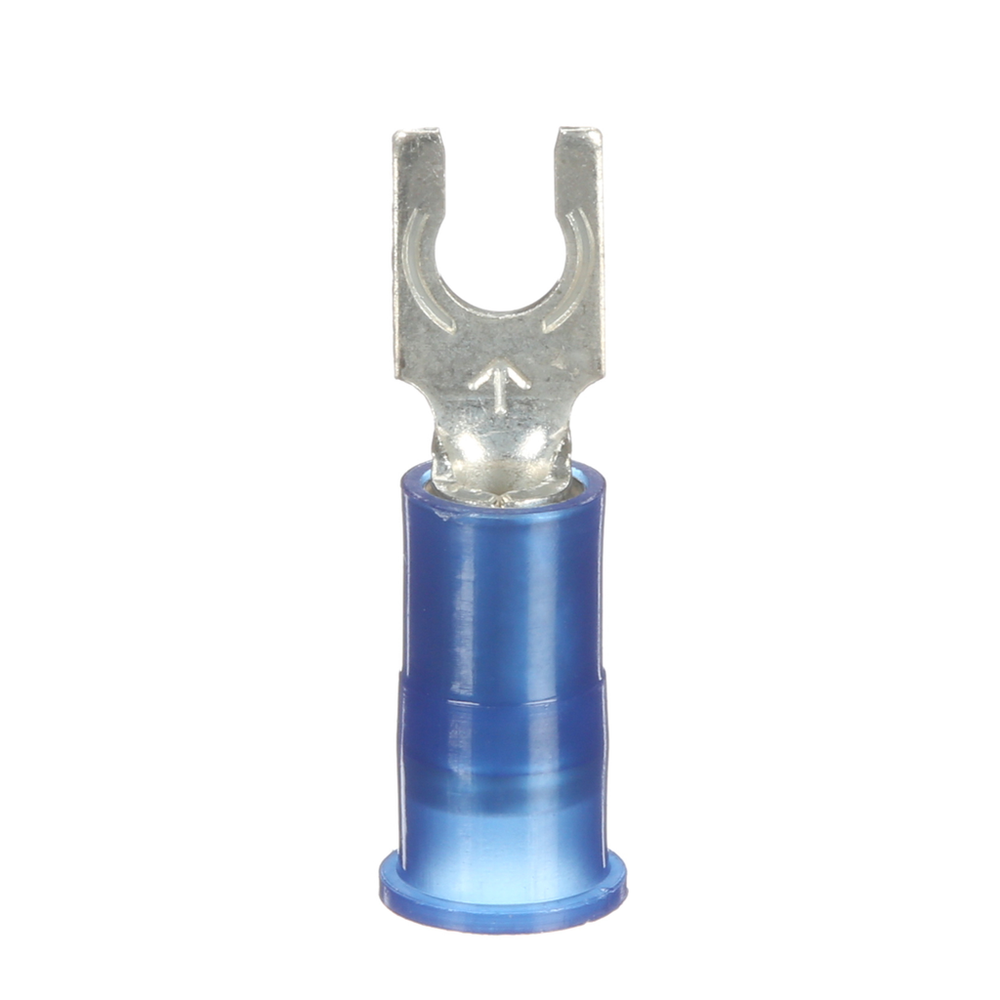

3M™ Scotchlok™ Locking Fork Nylon Insulated, 100/bottle, MNG14-6FLX, spring-like tongue firmly fits around the stud, 500/Case - 7000133362

Sold As: 100-Pack
SKU: 7000133362
MPN: 7000133362
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588024
3M ID: 80611464480
5 Digit UPC: 58802
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Packaging100 per bottle
Insulation MaterialNylon with Insulation Grip
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Metric)22.6
Barrel Inside Diameter0.090 Inch
Maximum Lock Width0.27 Inch
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Recommended Voltage Rating600.0
Fork TypeLocking
Overall Width (Imperial) UOMin
Stud Size#6
Units per Case500.0
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Overall Length (Imperial)0.89
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08 mm²
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)1.31 mm²
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Metric)6.09
Maximum Operating Temperature (Fahrenheit)221.0
MaterialPlastic
UL File NumberE23438
Dimension E0.71 Inch
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial)0.24
Terminal StyleLocking
Product ColorBlue
Clearance (C)0.25 Inch
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial)0.17
