3M Products & Supplies

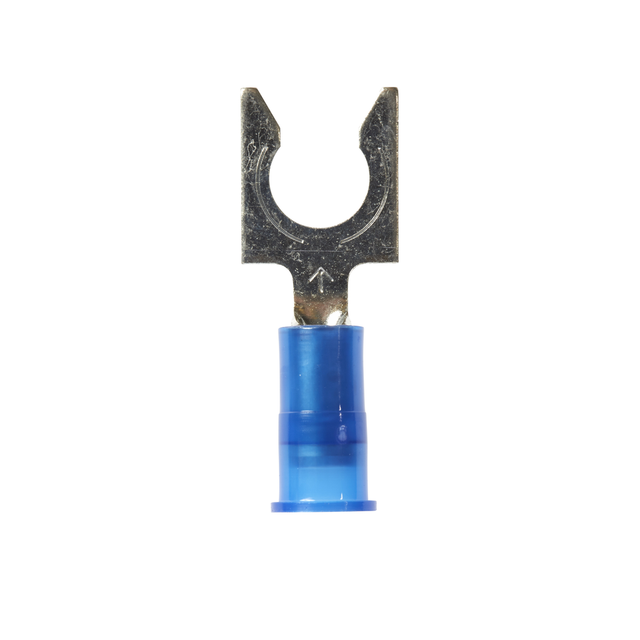

3M™ Scotchlok™ Locking Fork Nylon Insulated, 100/bottle, MNG14-4FLX, spring-like tongue firmly fits around the stud, 500/Case - 7100165253

Sold As: 500-Pack
SKU: 7100165253
MPN: 7100165253
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128588017
3M ID: 80611464472
5 Digit UPC: 58801
$681.76 ($1.36 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Metric) UOMmm
Stud Diameter (Imperial)0.112
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Length (Imperial)0.89
Maximum Lock Width0.27 Inch
Maximum Conductor Size (Metric)2.08 mm²
Terminal StyleLocking
Fork TypeLocking
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial) UOMin
Dimension E0.71 Inch
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial)0.25
Maximum Operating Temperature (Celsius) UOMDegree
Clearance (C)0.25 Inch
Stud Size#4
Packaging100 per bottle
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
Stud Diameter (Metric)2.845
Minimum Conductor Size (Metric)1.31 mm²
Units per Case500.0
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial) UOMin
UL File NumberE23438
Barrel Inside Diameter0.090 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Insulation MaterialNylon with Insulation Grip
Stud Diameter (Imperial) UOMin
