3M™ Scotchlok™ Locking Fork Non-Insulated, 100/bottle, M18-6FLX, spring-like tongue firmly fits around the stud, 500/Case - 7100165272

Sold As: 500-Pack
SKU: 7100165272
MPN: 7100165272
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588502
3M ID: 80611464969
5 Digit UPC: 58850
$464.46 ($0.93 / Count)
Hurry up! Current stock:

Product Description

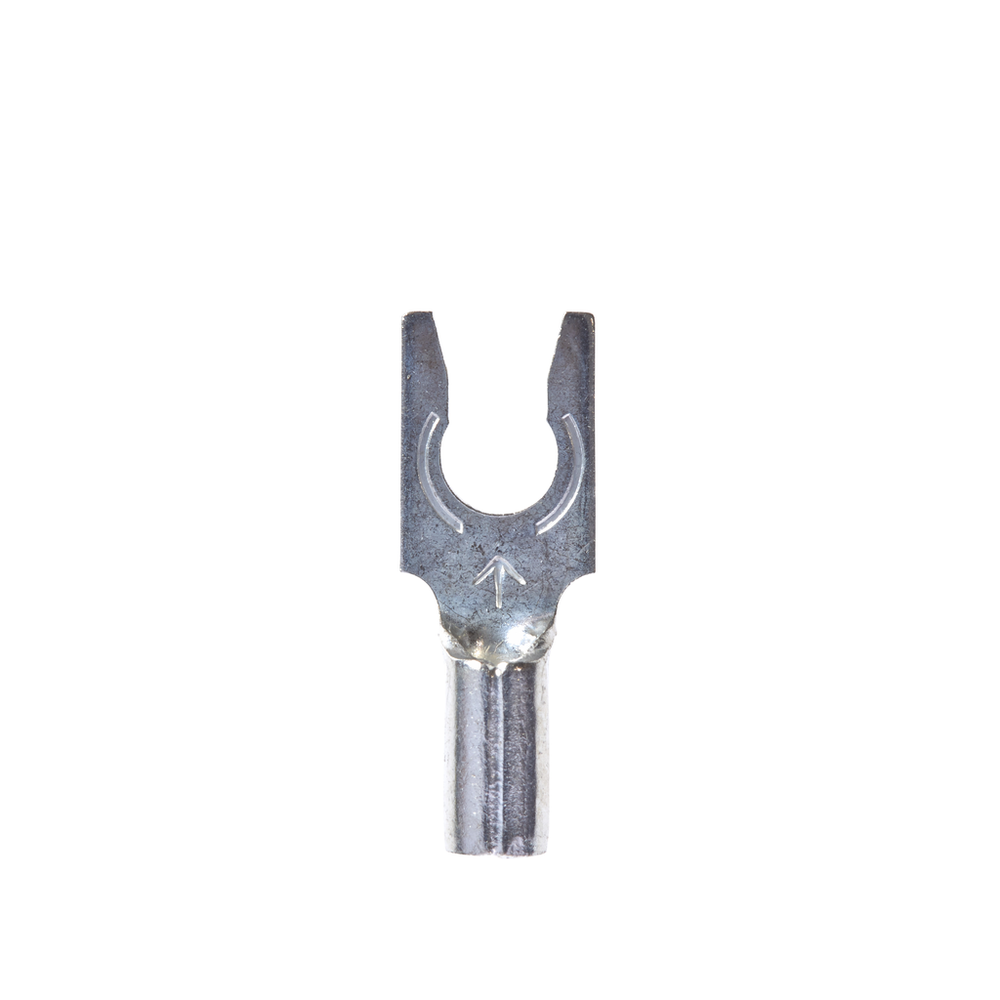

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Maximum Lock Width0.27 Inch
Barrel StyleBrazed
Units per Case500.0
Barrel Inside Diameter0.070 Inch
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric).0823 mm²
Maximum Conductor Size (Imperial)18 AWG
Terminal TypeFork
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial) UOMin
Fork TypeLocking
UL File NumberE23438
Overall Width (Imperial) UOMin
Terminal StyleLocking
Stud Size#6
Overall Width (Imperial)0.25
Dimension E0.50 Inch
Packaging100 per bottle
Minimum Conductor Size (Metric)0.326 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Clearance (C)0.25 Inch
Overall Length (Imperial)0.68
