3M Products & Supplies

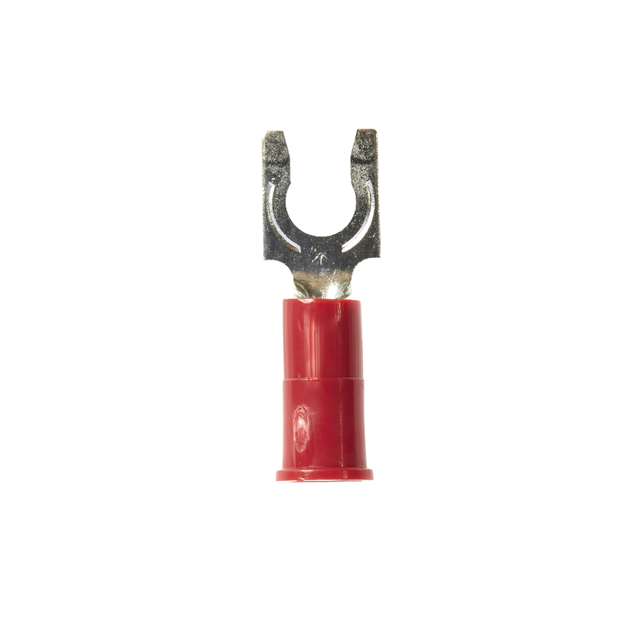

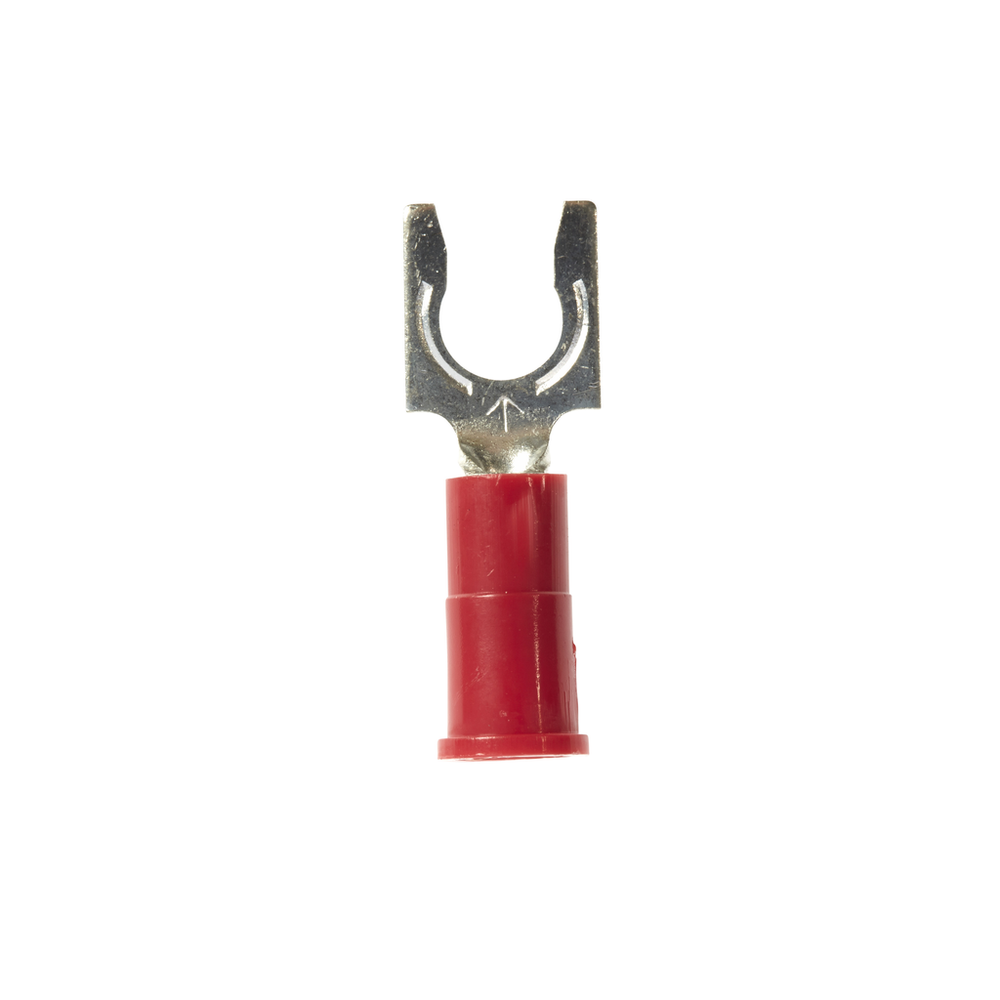

3M™ Scotchlok™ Locking Fork Vinyl Insulated, 100/bottle, MV18-10FLX, spring-like tongue firmly fits around the stud, 500/Case - 7000133370

Sold As: 100-Pack
SKU: 7000133370
MPN: 7000133370
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588444
3M ID: 80611464902
5 Digit UPC: 58844
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Metric) UOMmm
UL File NumberE23438
Maximum Recommended Voltage Rating600.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Overall Length (Imperial) UOMin
Overall Length (Metric)22.35
Terminal TypeFork
Maximum Operating Temperature (Celsius) UOMDegree
Dimension E0.70 Inch
Insulation MaterialVinyl
Overall Length (Metric) UOMmm
Fork TypeLocking
Maximum Recommended Voltage Rating UOMV
Overall Length (Imperial)0.88
Barrel Inside Diameter0.070 Inch
Packaging100 per bottle
MaterialPlastic
Maximum Conductor Size (Metric).0823 mm²
Maximum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.32
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Imperial)18 AWG
Overall Width (Imperial) UOMin
Barrel StyleBrazed
Clearance (C)0.25 Inch
Product ColorRed
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Size#10
Terminal StyleLocking
Units per Case500.0
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Lock Width0.35 Inch
Minimum Conductor Size (Metric)0.823 mm²
Overall Width (Metric)8.12
