3M Products & Supplies

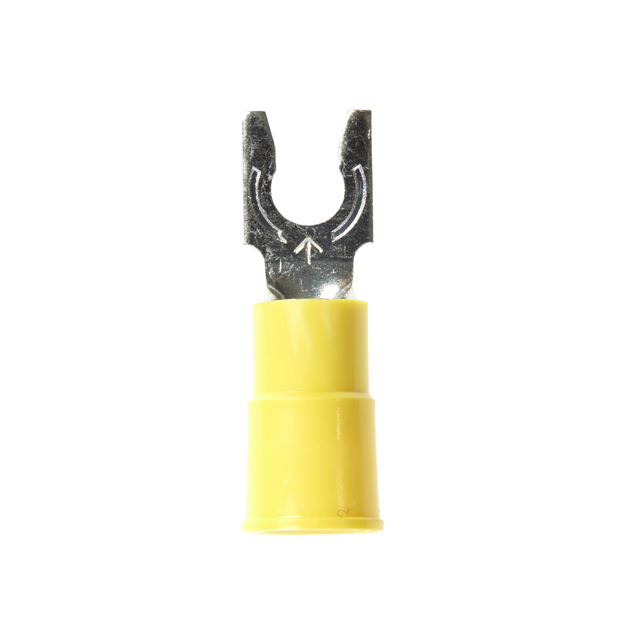

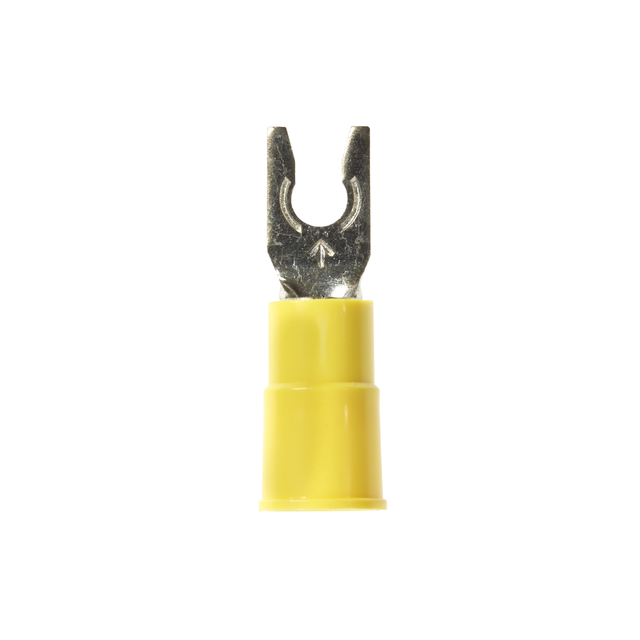

3M™ Scotchlok™ Locking Fork Vinyl Insulated, 50/bottle, MV10-10FLX, spring-like tongue firmly fits around the stud, 500/Case - 7010320678

Sold As: 50-Pack
SKU: 7010320678
MPN: 7010320678
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588304
3M ID: 80611464761
5 Digit UPC: 58830
$48.70 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Maximum Lock Width0.36 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Minimum Conductor Size (Metric)3.31 mm²
Units per Case500.0
Maximum Conductor Size (Imperial)10 AWG
Barrel Inside Diameter0.135 Inch
Stud Size#10
Dimension E0.83 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Clearance (C)0.28 Inch
Fork TypeLocking
Overall Length (Imperial)1.03
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)5.26 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Barrel StyleBrazed
UL File NumberE23438
Overall Width (Imperial) UOMin
Terminal StyleLocking
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)0.32
Terminal TypeFork
Insulation MaterialVinyl
Packaging50 per bottle
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
