3M Products & Supplies

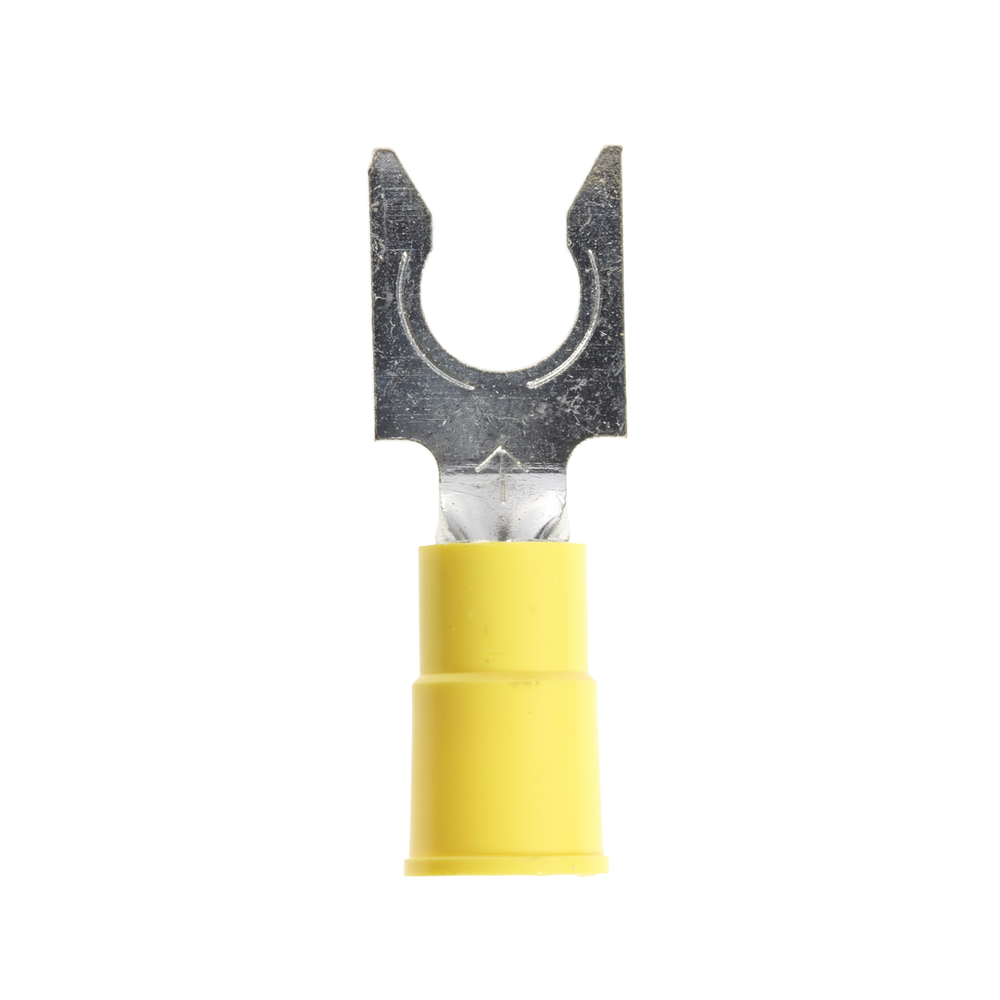

3M™ Scotchlok™ Locking Fork Vinyl Insulated, 50/bottle, MV10-14FLX, spring-like tongue firmly fits around the stud, 500/Case - 7000133367

Sold As: 50-Pack
SKU: 7000133367
MPN: 7000133367
For an accurate lead time please contact us
UPC: 00051128588284
3M ID: 80611464746
5 Digit UPC: 58828
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Barrel StyleBrazed
Packaging50 per bottle
Maximum Conductor Size (Metric)5.26 mm²
Maximum Operating Temperature (Celsius)105.0
Overall Length (Metric) UOMmm
Clearance (C)0.44 Inch
Overall Width (Metric) UOMmm
Insulation MaterialVinyl
Units per Case500.0
Overall Length (Metric)31.49
Stud Diameter (Imperial)0.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Stud Size1/4 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Diameter (Metric)0.0
Dimension E0.99 Inch
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial)1.24
Terminal TypeFork
Maximum Recommended Voltage Rating600.0
Overall Width (Metric)10.92
Overall Width (Imperial)0.43
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.25
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Imperial)10 AWG
Terminal StyleLocking
Product ColorYellow
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Recommended Voltage Rating UOMV
Fork TypeLocking
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Maximum Lock Width0.48 Inch
MaterialPlastic
