3M Products & Supplies

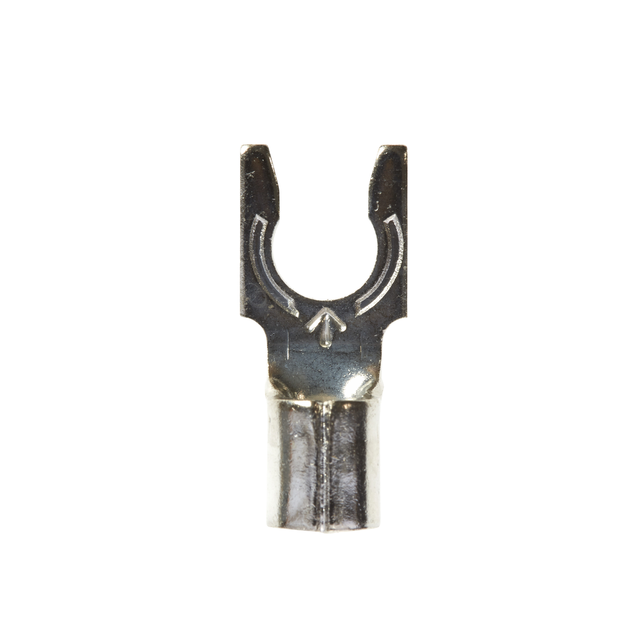

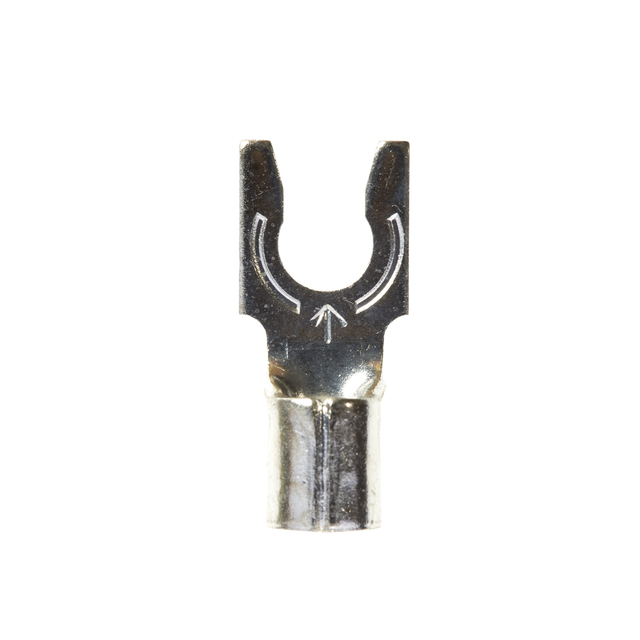

3M™ Scotchlok™ Locking Fork Non-Insulated, 50/bottle, M10-14FLX, spring-like tongue firmly fits around the stud, 500/Case - 7100165261

Sold As: 500-Pack
SKU: 7100165261
MPN: 7100165261
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588311
3M ID: 80611464779
5 Digit UPC: 58831
$486.95 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • Spring-like tongue firmly fits around the stud
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Barrel StyleBrazed
Minimum Conductor Size (Metric)3.31 mm²
Insulation MaterialNon-insulated
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial)0.43
Terminal StyleLocking
Units per Case500.0
Terminal TypeFork
Maximum Lock Width0.48 Inch
Fork TypeLocking
Clearance (C)0.44 Inch
Dimension E0.69 Inch
Barrel Inside Diameter0.135 Inch
Maximum Conductor Size (Metric)5.26 mm²
Overall Width (Imperial) UOMin
UL File NumberE23438
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)10 AWG
Packaging50 per bottle
Stud Size1/4 Inch
Overall Length (Imperial)0.94
