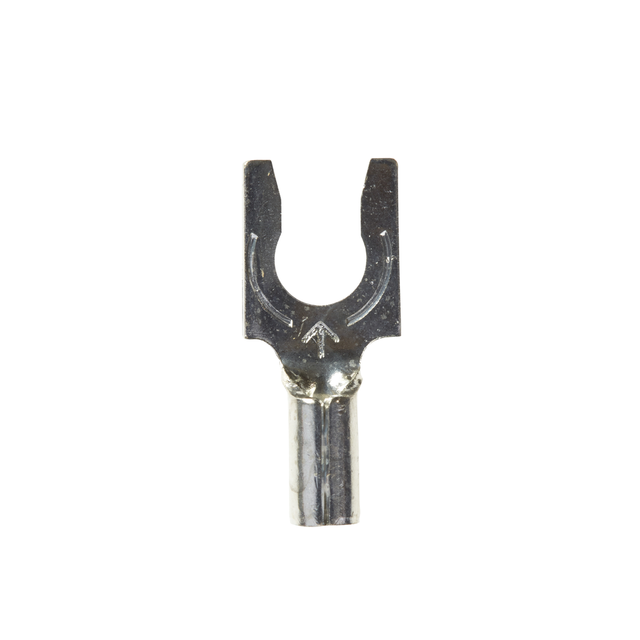

3M™ Scotchlok™ Locking Fork Non-Insulated, 50/bottle, M10-8FLX, spring-like tongue firmly fits around the stud - 7100165262

Sold As: 500-Pack
SKU: 7100165262
MPN: 7100165262
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588335
3M ID: 80611464795
5 Digit UPC: 58833
$442.04 ($0.88 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Beveled mouth offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleBrazed
Overall Width (Imperial)0.32
Terminal TypeFork
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial) UOMin
Insulation MaterialNon-insulated
Barrel Inside Diameter0.135 Inch
Stud Size#8
Maximum Conductor Size (Metric)5.26 mm²
Fork TypeLocking
Minimum Conductor Size (Imperial)12 AWG
Clearance (C)0.28 Inch
Overall Length (Imperial)0.73
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Lock Width0.35 Inch
UL File NumberE23438
Packaging50 per bottle
Dimension E0.53 Inch
Units per Case500.0
Terminal StyleLocking
