3M™ Scotchlok™ Locking Fork Nylon Insulated, 50/bottle, MNG10-14FLX, spring-like tongue firmly fits around the stud, 500/Case - 7010398183

Sold As: 500-Pack
SKU: 7010398183
MPN: 7010398183
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128587925
3M ID: 80611464381
5 Digit UPC: 58792
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

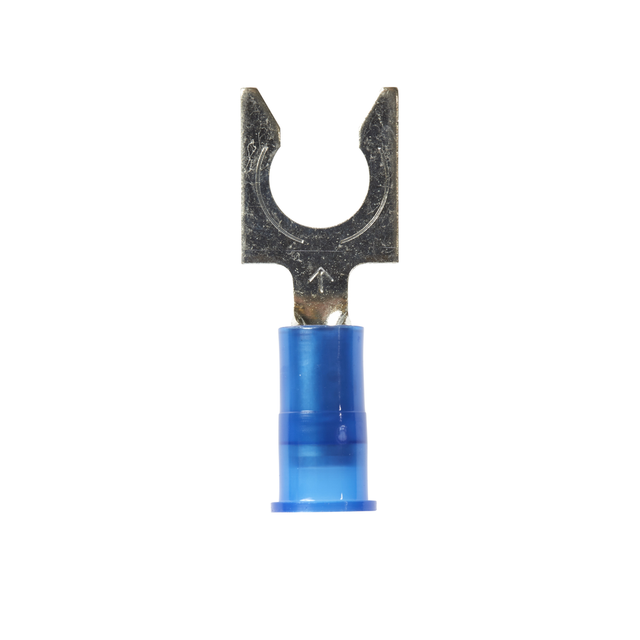

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)5.26 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Diameter (Imperial)0.138
Overall Length (Imperial)1.24
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.43
Barrel StyleButted
Barrel Inside Diameter0.135 Inch
Stud Diameter (Imperial) UOMin
Maximum Lock Width0.48 Inch
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case500.0
Terminal StyleLocking
Clearance (C)0.44 Inch
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Dimension E0.99 Inch
Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Imperial)10 AWG
Insulation MaterialNylon with Insulation Grip
Fork TypeLocking
Stud Size1/4 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Imperial)12 AWG
Stud Diameter (Metric)3.505
Packaging50 per bottle
Maximum Insulation Outer Diameter (Imperial)0.25
