3M Products & Supplies

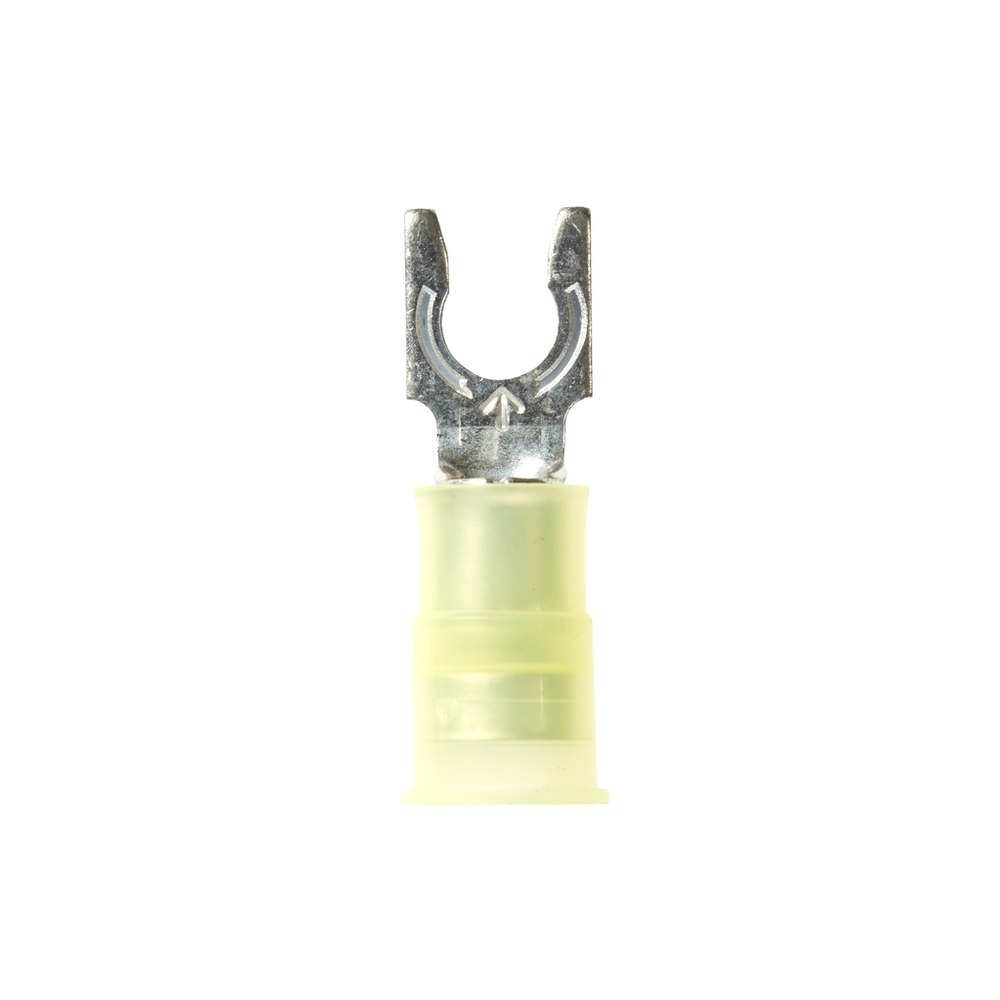

3M™ Scotchlok™ Locking Fork Nylon Insulated, 50/bottle, MNG10-10FLX, spring-like tongue firmly fits around the stud, 500/Case - 7000133357

Sold As: 50-Pack
SKU: 7000133357
MPN: 7000133357
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587911
3M ID: 80611464373
5 Digit UPC: 58791
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Units per Case500.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)105.0
MaterialPlastic
Maximum Conductor Size (Imperial)10 AWG
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel StyleButted
Maximum Insulation Outer Diameter (Metric)3.7
Insulation MaterialNylon with Insulation Grip
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Recommended Voltage Rating UOMV
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial)0.32
Packaging50 per bottle
Maximum Conductor Size (Metric)5.26 mm²
Clearance (C)0.28 Inch
Overall Width (Imperial) UOMin
Fork TypeLocking
Barrel Inside Diameter0.135 Inch
Stud Size#10
Overall Width (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Maximum Recommended Voltage Rating600.0
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Width (Metric)8.12
Terminal StyleLocking
Overall Length (Imperial)1.03
UL File NumberE23438
Maximum Lock Width0.36 Inch
Product ColorYellow
Dimension E0.83 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Length (Metric)26.16
