3M Products & Supplies

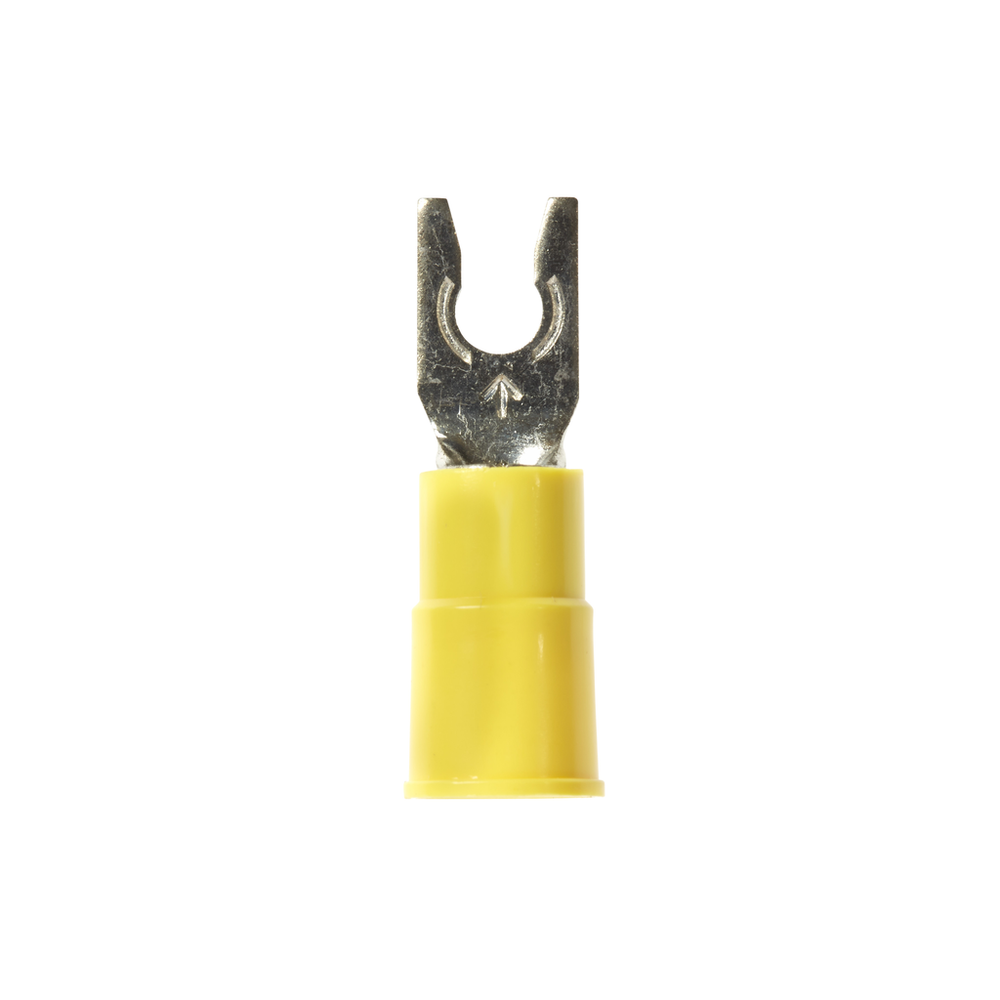

3M™ Scotchlok™ Locking Fork Vinyl Insulated, 50/bottle, MV10-6FLX, spring-like tongue firmly fits around the stud, 500/Case - 7010398194

Sold As: 50-Pack
SKU: 7010398194
MPN: 7010398194
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588328
3M ID: 80611464787
5 Digit UPC: 58832
$48.70 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Terminal TypeFork
Maximum Conductor Size (Metric)5.26 mm²
Packaging50 per bottle
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
UL File NumberE23438
Stud Size#6
Maximum Operating Temperature (Celsius)105.0
Fork TypeLocking
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Terminal StyleLocking
Dimension E0.83 Inch
Overall Length (Imperial) UOMin
Barrel Inside Diameter0.135 Inch
Overall Length (Imperial)1.03
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Imperial)0.25
Insulation MaterialVinyl
Units per Case500.0
Clearance (C)0.28 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Lock Width0.30 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Width (Imperial)0.28
Barrel StyleBrazed
