3M™ Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU10-6FLK, Stud Size 6, 500/Case - 7100164146

Sold As: 500-Pack
SKU: 7100164146
MPN: 7100164146
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021148
3M ID: 80610051197
5 Digit UPC: 2114
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

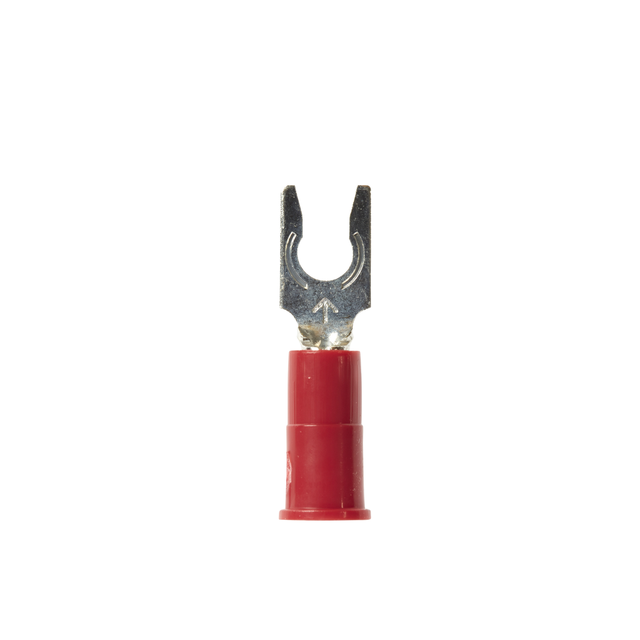

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Diameter (Imperial)0.138
Packaging500 per bulk box
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Units per Case500.0
Clearance (C)0.28 Inch
Terminal StyleLocking
Barrel StyleButted
Stud Diameter (Metric)3.505
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Metric)5.26 mm²
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.28
Stud Diameter (Metric) UOMmm
Fork TypeLocking
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)1.03
Terminal TypeFork
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Lock Width0.3 Inch
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Imperial)12 AWG
Stud Size#6
Maximum Conductor Size (Imperial)10 AWG
Overall Width (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial) UOMin
Dimension E0.83 Inch
Barrel Inside Diameter0.135 Inch
Insulation MaterialVinyl
