3M Products & Supplies

3M™ Scotchlok™ Male Disconnect, Fully Nylon Insulated w/Insulation Grip MNG14-187DMIK, 16-14 AWG, 1000/Case - 7000132282

Sold As: 1000-Pack
SKU: 7000132282
MPN: 7000132282
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023869
3M ID: 80610065023
5 Digit UPC: 2386
$674.24 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • This male disconnect terminal offers excellent holding force
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Allows for quick and easy disconnect of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.187
Connection Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.5 mm²
Insulation ColorBlue
Connection Width (Metric)4.75
Connector / Connector ToolConnector
Maximum Recommended Voltage Rating600.0
Connection Width (Metric) UOMmm
Units per Case1000.0
Maximum Conductor Size (Imperial)14 AWG
Barrel Length (Imperial)0.24 Inch
Voltage ApplicationLow Voltage
Overall Width (Imperial)0.37
MaterialPlastic
Conductor Sizes (Imperial)16 - 14 AWG
Overall Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric)3.7
Minimum Conductor Size (Metric)1.5 mm²
Maximum Recommended Voltage Rating UOMV
Packaging1000 per bulk box
Connector StyleInsulation Displacement
Connection TypeWire
Pad Width0.187
Maximum Insulation Outside Diameter0.145 in
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.87
Overall Length (Imperial) UOMin
Barrel StyleButted
Insulation MaterialNylon with Insulation Grip
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric) UOMmm
Diameter (D)0.30 Inch
Overall Diameter (Imperial)0.3
Terminal TypeDisconnect
Disconnect TypeMale
Terminal StyleFully Insulated
Maximum Operating Temperature (Fahrenheit)221.0
Product ColorBlue
Maximum Operating Temperature (Celsius)105.0
Barrel Inside Diameter0.145 Inch
Fastener OrientationMale
UL File NumberE70512
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tab Width0.250

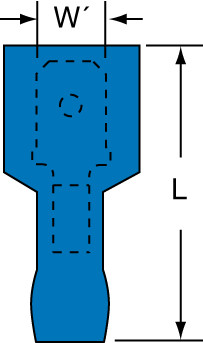

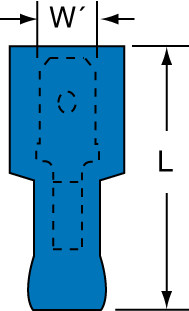

Male Tab Width (W')0.187 Inch
