3M Products & Supplies

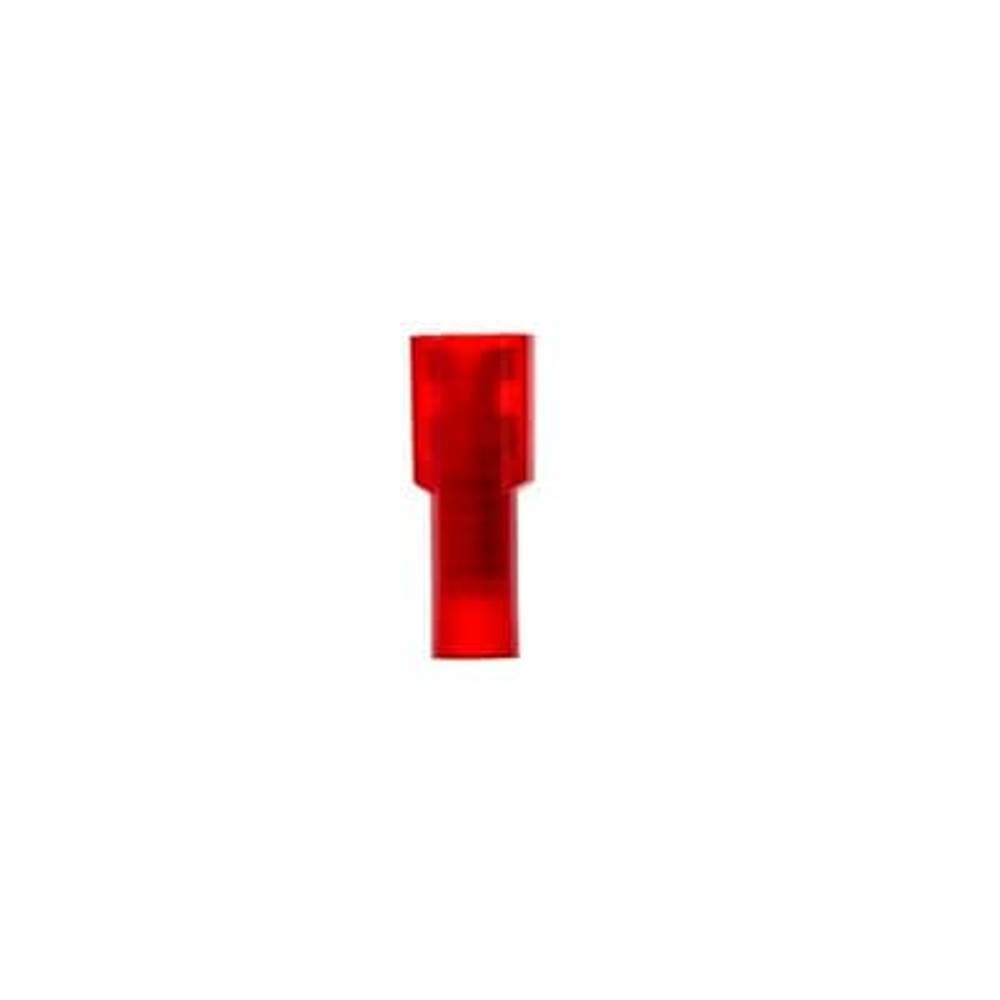

3M™ Scotchlok™ Male Disconnect Nylon Insulated, 100/bottle, MNU18-187DMIX, 500/Case - 7100003936

Sold As: 100-Pack
SKU: 7100003936
MPN: 7100003936
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128587840
3M ID: 80611464308
5 Digit UPC: 58784
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 12-10 AWG and has case quantities of 500 per case.

Features

  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.187
Barrel StyleButted
Overall Diameter (Imperial) UOMin
Units per Case500.0
Tab Width0.250
Terminal TypeDisconnect
Connection Width (Imperial) UOMin
UL File NumberE70512
Overall Width (Metric) UOMmm
Connection Width (Metric) UOMmm
MaterialETP Copper
Maximum Insulation Outer Diameter (Imperial) UOMin
Terminal StyleFully Insulated
Pad Width0.187
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.87
Insulation MaterialNylon
Overall Width (Imperial) UOMin
Connection Width (Metric)4.75
Diameter (D)0.30 Inch
Fastener OrientationMale
Overall Length (Metric) UOMmm
Disconnect TypeMale
Maximum Conductor Size (Metric)1 mm²
Male Tab Width (W')0.187 Inch
Packaging100 per bottle
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Metric)22.098
Overall Width (Imperial)0.37
Overall Width (Metric)9.398
Product ColorRed
Barrel Inside Diameter0.080 Inch
Minimum Conductor Size (Metric).34 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Diameter (Imperial)0.3
