3M Products & Supplies

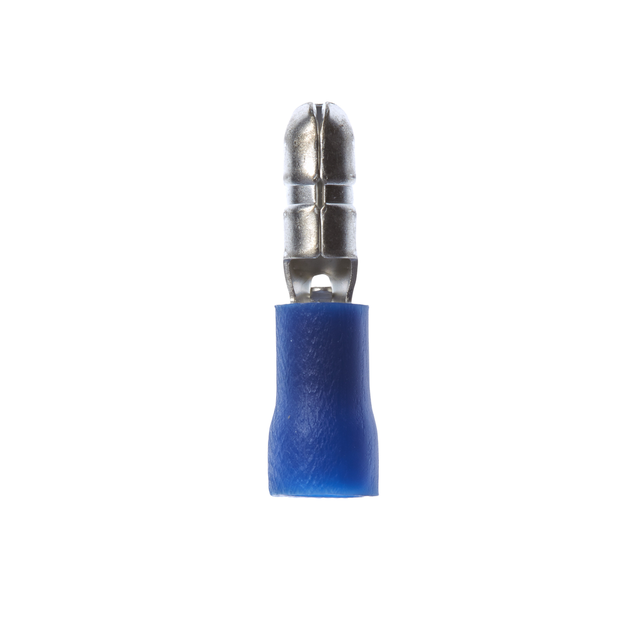

3M™ Scotchlok™ Male Disconnect, Vinyl Insulated Butted Seam Bullet Style MVU14-180DMK-A, 1000/Case - 7100165196

Sold As: 1000-Pack
SKU: 7100165196
MPN: 7100165196
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138981624
3M ID: 80611445075
5 Digit UPC: 98162
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Butted Seam Bullet-Style Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The snap plug has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • This male disconnect terminal offers excellent holding force
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Accommodates wire sizes 22 to 18 AWG
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Mates with 0.156-in wide female tab
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Connection Width (Imperial) UOMin
Fastener OrientationMale
Connection Width (Imperial)0.18
Packaging1000 per bulk box
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case1000.0
Disconnect TypeMale
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.83
Mating Snap Diameter (S)0.18 Inch
Connection Width (Metric)4.572
Tab Width0.187
Terminal StyleBullet Snap Plug
Pad Width0.18
Terminal TypeBullet
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Metric)21.0
Overall Length (Metric) UOMmm
Barrel StyleButted
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial)0.17
