3M Products & Supplies

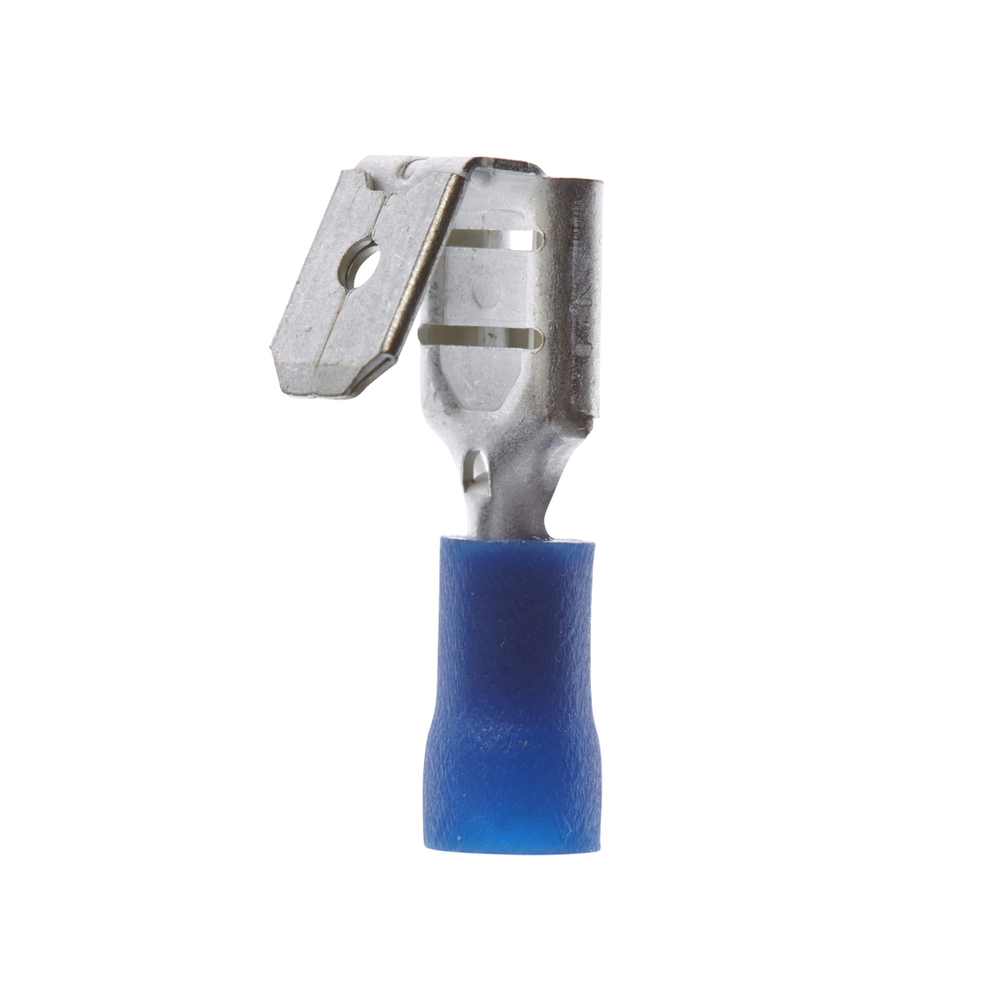

3M™ Scotchlok™ Multi-Stack Disconnect, Vinyl Insulated Butted Seam MVU14-250DMFK-A, 1000/Case - 7100165167

Sold As: 1000-Pack
SKU: 7100165167
MPN: 7100165167
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138980733
3M ID: 80611255953
MPN: 95365
$429.32 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.

Features

  • Mates with 0.25-in wide male and female tab
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
  • Accommodates wire sizes 22 to 18 AWG
Spec Sheet



Downloads

Specifications

Minimum Conductor Size (Metric)1.5 mm²
Barrel Length (Imperial)0.23 Inch
Terminal StylePiggy-back
Connection Width (Metric)6.35
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial)0.17
Bullet Diameter0.156
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial)0.87
Country of OriginTaiwan
Minimum Conductor Size (Imperial)16 AWG
Fastener OrientationMale-Female
Connection Width (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Disconnect TypeFemale
Barrel Inside Diameter0.09 Inch
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial) UOMin
Packaging1000 per bulk box
Connection Width (Metric) UOMmm
Units per Case1000.0
Mates with Male Tab Width (W')0.25 Inch
Pad Width0.25
Overall Length (Imperial) UOMin
Mates with Female Width0.25 Inch
Terminal TypeDisconnect
Maximum Conductor Size (Metric)2.5 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial)0.25
