3M Products & Supplies

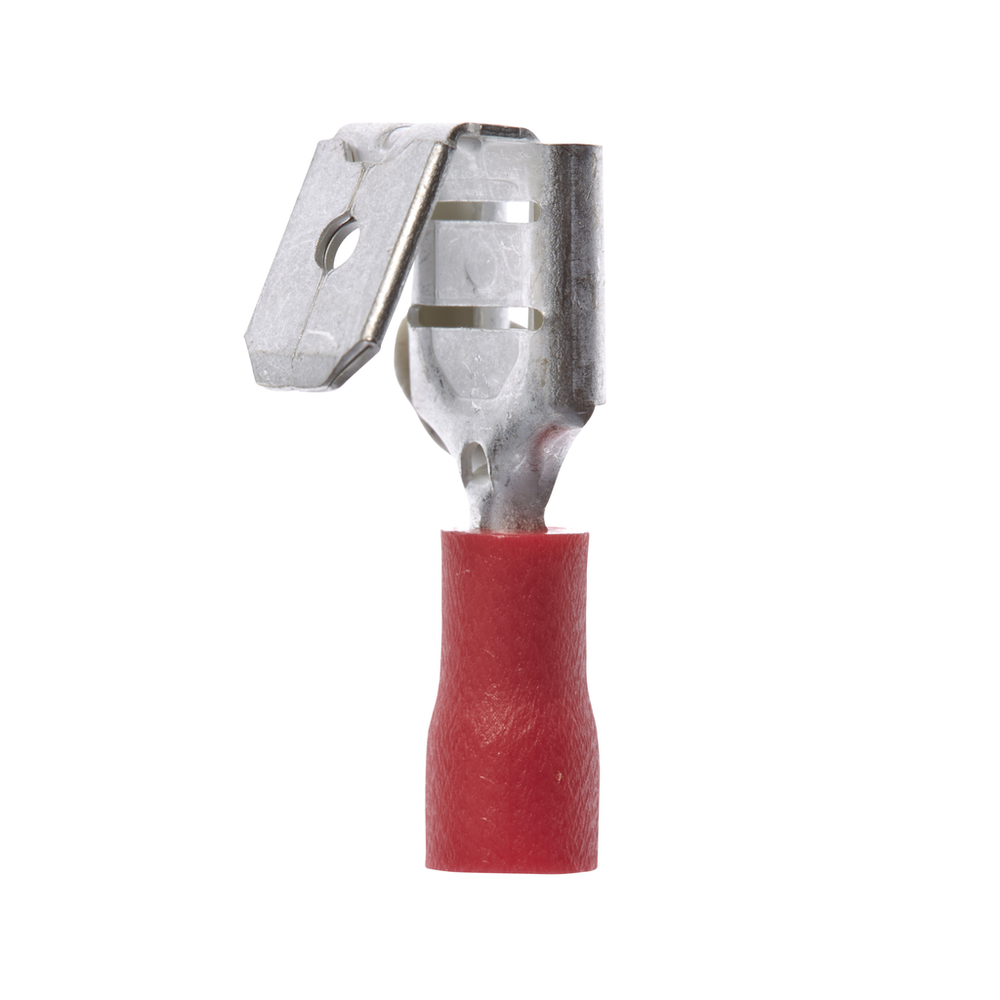

3M™ Scotchlok™ Multi-Stack Disconnect, Vinyl Insulated Butted Seam MVU18-250DMFK-A, 1000/Case - 7100165164

Sold As: 1000-Pack
SKU: 7100165164
MPN: 7100165164
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138980627
3M ID: 80611445521
MPN: 60-SN-A
$429.32 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.

Features

  • Mates with 0.25-in wide male and female tab
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Accommodates wire sizes 22 to 18 AWG
  • The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
Spec Sheet



Downloads

Specifications

Connection Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Disconnect TypeMale
Minimum Conductor Size (Imperial)22 AWG
Country of OriginTaiwan
Packaging1000 per bulk box
Minimum Conductor Size (Metric).34 mm²
Terminal TypeDisconnect
Barrel Length (Imperial)0.23 Inch
Maximum Conductor Size (Imperial)18 AWG
Mates with Male Tab Width (W')0.25 Inch
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
Terminal StylePiggy-back
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)1 mm²
Insulation MaterialVinyl
Connection Width (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.07 Inch
Bullet Diameter0.180
Fastener OrientationMale-Female
Barrel StyleButted
Mates with Female Width0.25 Inch
Pad Width0.25
Overall Length (Imperial)0.87
Units per Case1000.0
Maximum Insulation Outer Diameter (Imperial)0.145
