3M Products & Supplies

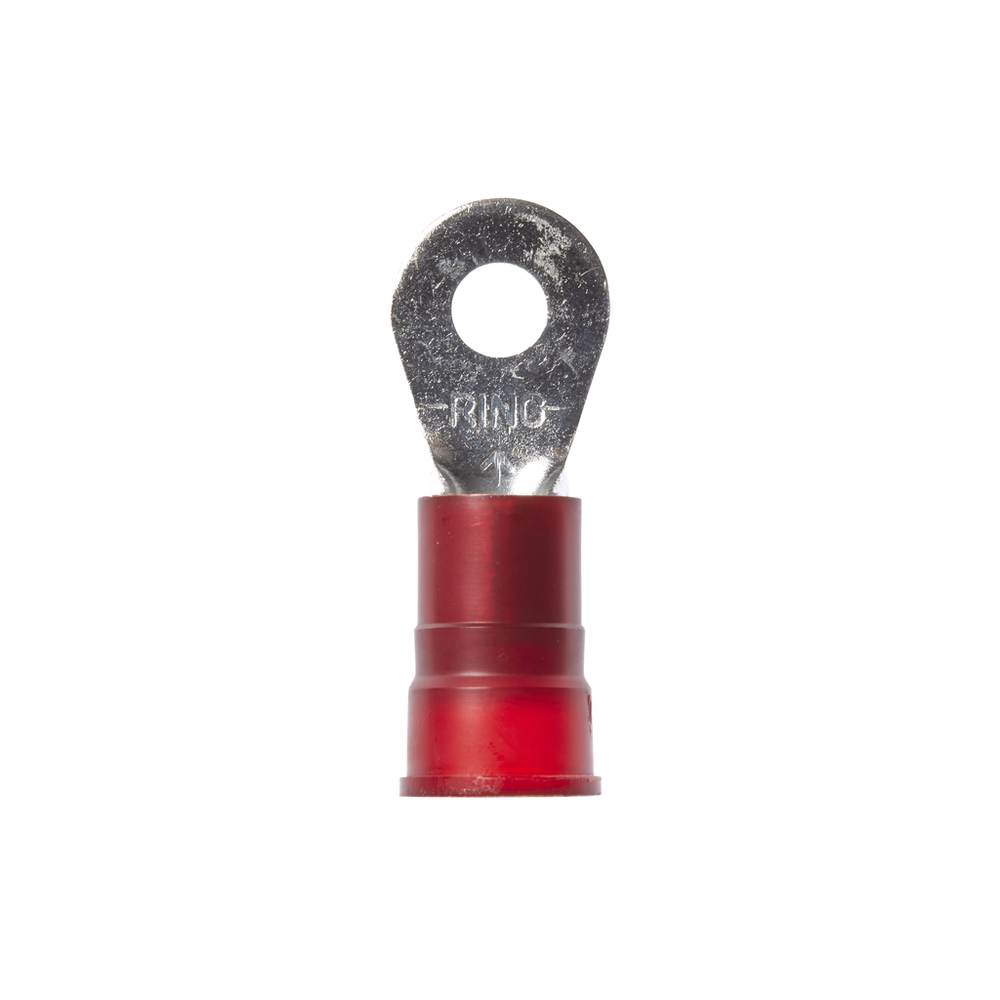

3M™ Scotchlok™ MN8-10R/SK Nylon Insulated Brazed Seam Standard Ring Terminal, 10 Stud, 8 AWG, Red, 200/Case - 7100077614

Sold As: 200-Pack
SKU: 7100077614
MPN: 7100077614
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082675
3M ID: 80008006035
5 Digit UPC: 8267
$110.59 ($0.55 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection TypeCrimp
Maximum Conductor Size (Metric)8.37
Maximum Voltage Rating600 to 1000 V
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.47
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Barrel StyleBrazed Seam
Insulation MaterialNylon
Ring TypeStandard
Terminal StyleStandard
UL File NumberE23438
Connection Width (Metric)4.826
Minimum Conductor Size (Metric)8.37 mm²
Terminal TypeRing
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Recommended Voltage Rating600.0
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial)0.19
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Metric) UOMmm
Maximum Conductor Size (Imperial)8 AWG
Barrel Length (Imperial)0.39 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Imperial)8 AWG
Overall Length (Imperial)1.26
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Connection Width (Imperial) UOMin
