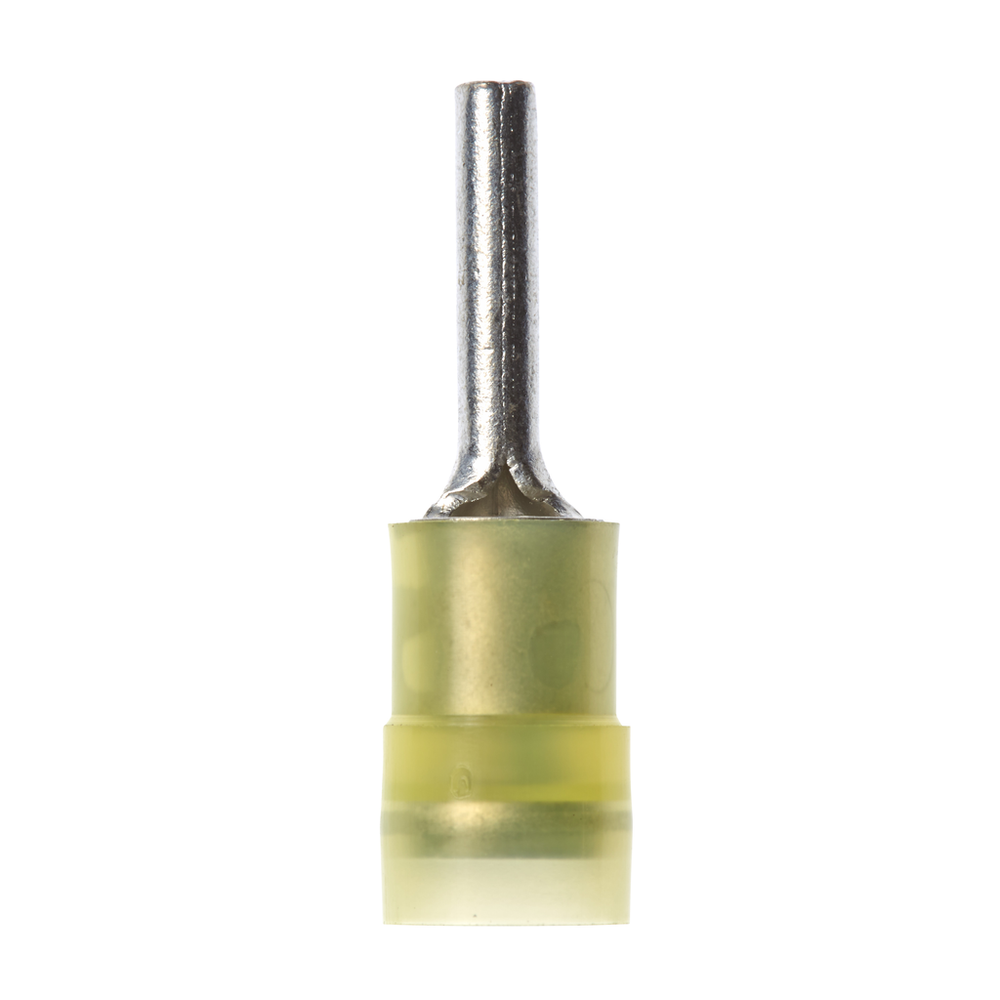

3M™ Scotchlok™ MNG10-55PX-A Nylon-Insulated Insulation Grip Standard Pin Terminal, 12 to 10 AWG, Yellow, 50/Carton, 500/Case - 7000133373

Sold As: 50-Pack
SKU: 7000133373
MPN: 7000133373
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588649
3M ID: 80611465107
5 Digit UPC: 58864
$79.79 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Pin Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Specifications

Country of OriginTaiwan
Connection Width (Imperial)0.11
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric) UOMmm
Maximum Voltage Rating600 to 1000 V
Maximum Recommended Voltage Rating600.0
Overall Length (Metric)26.92
Insulation MaterialNylon with Insulation Grip
Connection Width (Metric)2.794
Conductor Sizes (Imperial)12 - 10 AWG
Units per Case500.0
Minimum Conductor Size (Imperial)12 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Recommended Voltage Rating UOMV
Operating Temperature Range (Celsius)-40 °C to 105 °C
InsulatedYes
Barrel Inside Diameter0.080 in
Maximum Conductor Size (Metric)6 mm²
Terminal TypePin
Connection Width (Imperial) UOMin
Packaging50 per bottle
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Fahrenheit)221.0
Barrel StyleButted Seam
MaterialPlastic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorYellow
Overall Length (Metric) UOMmm
Minimum Conductor Size (Metric)4 mm²
Terminal MaterialTin-Plated Electrolytic Copper
Overall Length (Imperial)1.06
Pin Length (PL)0.55 Inch
Maximum Conductor Size (Imperial)10 AWG
Maximum Insulation Outer Diameter (Imperial)0.27
Maximum Insulation Outside Diameter0.145 in
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Insulation Outer Diameter (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Insulation ColorYellow
Maximum Insulation Outer Diameter (Imperial) UOMin
UL File NumberE70512
Overall Length (Imperial) UOMin
