3M Products & Supplies

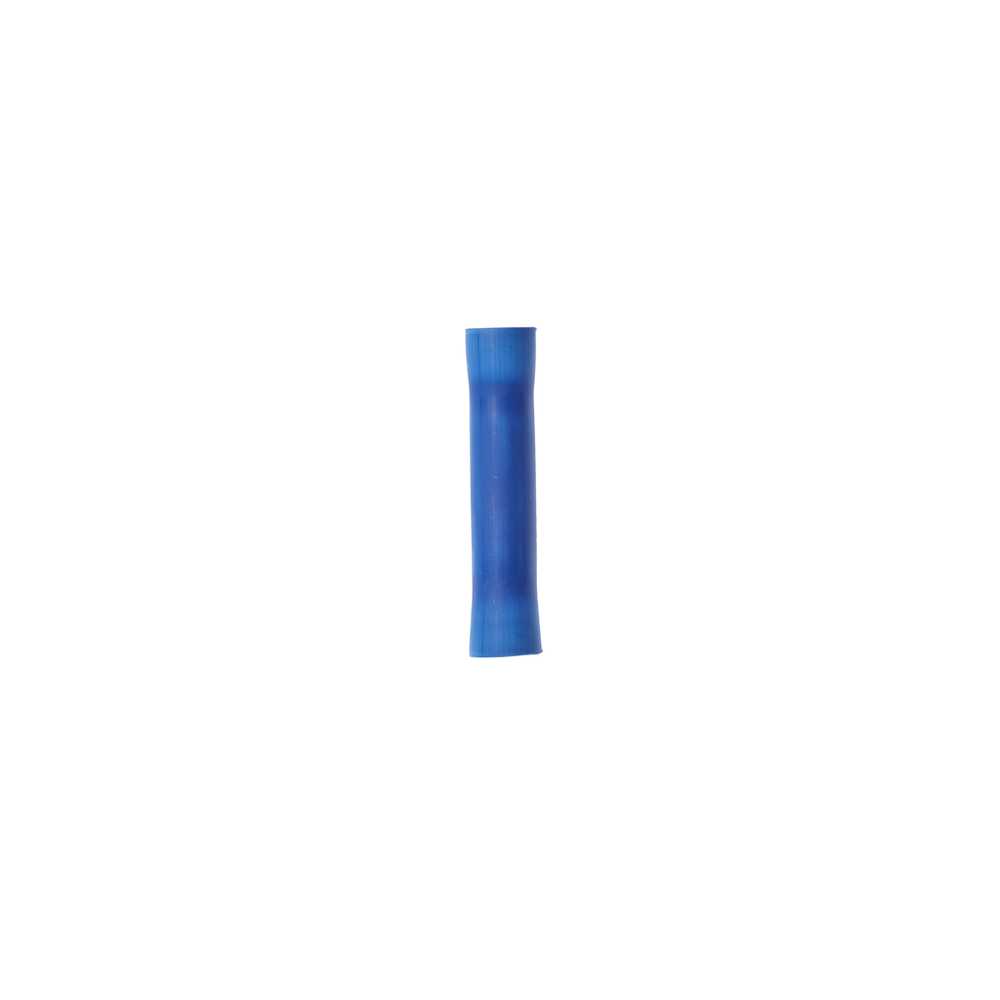

3M™ Scotchlok™ MVU14PCK Vinyl-Insulated Butted Seam Parallel Connector, 16 - 14 AWG, Blue, 1000/case - 7100164058

Sold As: 1000-Pack
SKU: 7100164058
MPN: 7100164058
Lead Time: 8 working days.
UPC: 00054007018247
3M ID: 80610047351
5 Digit UPC: 1824
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Parallel Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). An electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Suitable for use where space is limited
  • Accommodates wire sizes 16 to 14 AWG
  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation ColorBlue
Maximum Insulation Outer Diameter (Imperial)0.17
Operating Temperature Range (Celsius)-40 °C to 105 °C
Barrel Inside Diameter0.090 in
Barrel Length (Imperial)0.30 Inch
Connector TypeButt
Maximum Voltage Rating600 to 1000 V
Body MaterialCopper Alloy
Terminal MaterialTin-Plated Electrolytic Copper
Barrel StyleButted Seam
Overall Length (Imperial)0.67
Terminal TypeParallel Connector
Units per Case1000.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
InsulatedYes
Packaging1000 per case
Solution forWireless Network: Infrastructure Accessories
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Insulation MaterialVinyl
Cu Stranded Wire Combinations1 #16 to 1 #16
Minimum Conductor Size (Metric)2.5 mm²
Maximum Conductor Size (Metric)1.5 mm²
Minimum Conductor Size (Imperial)14 AWG
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
