3M Products & Supplies

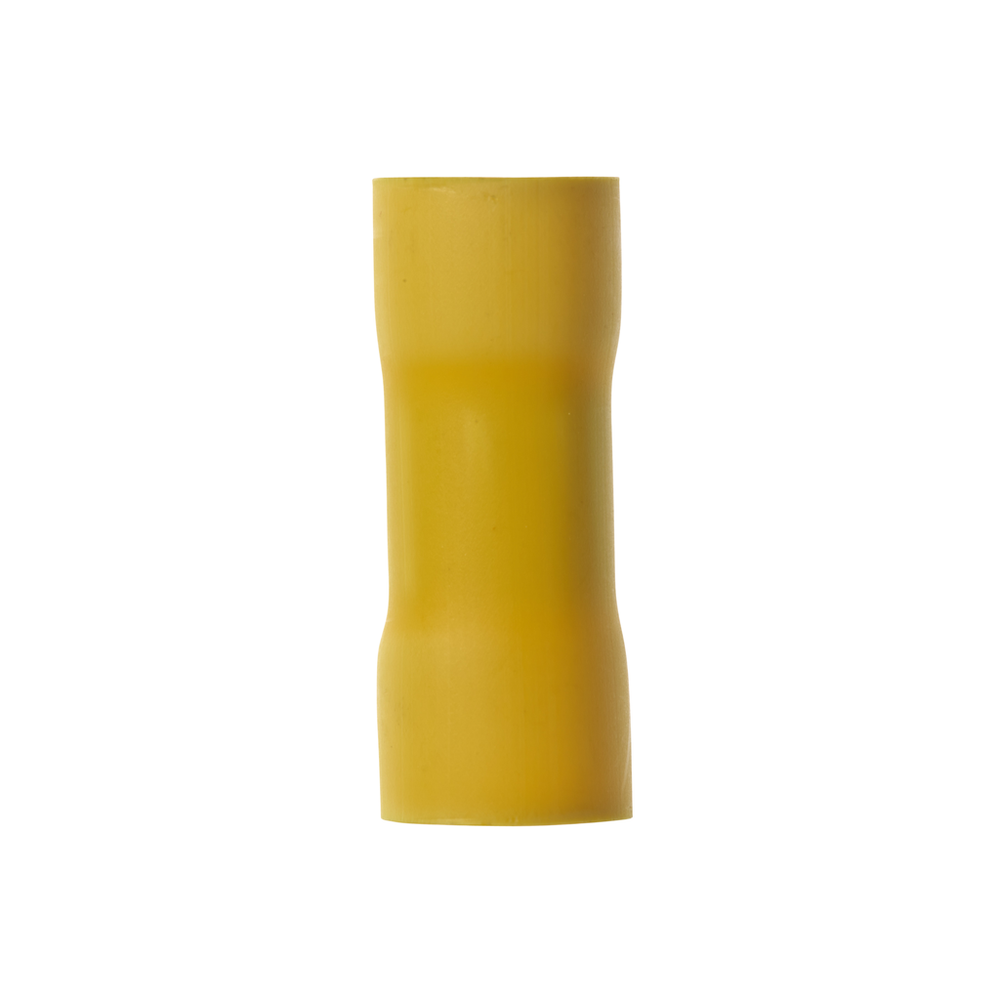

3M™ Scotchlok™ Parallel Connector, Vinyl Insulated Butted Seam MVU10PCK, 12-10 AWG, 500/Case - 7100164138

Sold As: 500-Pack
SKU: 7100164138
MPN: 7100164138
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020844
3M ID: 80610050744
5 Digit UPC: 2084
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Parallel Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). An electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Suitable for use where space is limited
  • Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Accommodates wire sizes 12 to 10 AWG
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Stud Diameter (Metric)5.0
Overall Length (Imperial)0.87
Minimum Stud Diameter (Imperial)0.19
Minimum Conductor Size (Metric)4 mm²
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)6 mm²
