3M Products & Supplies

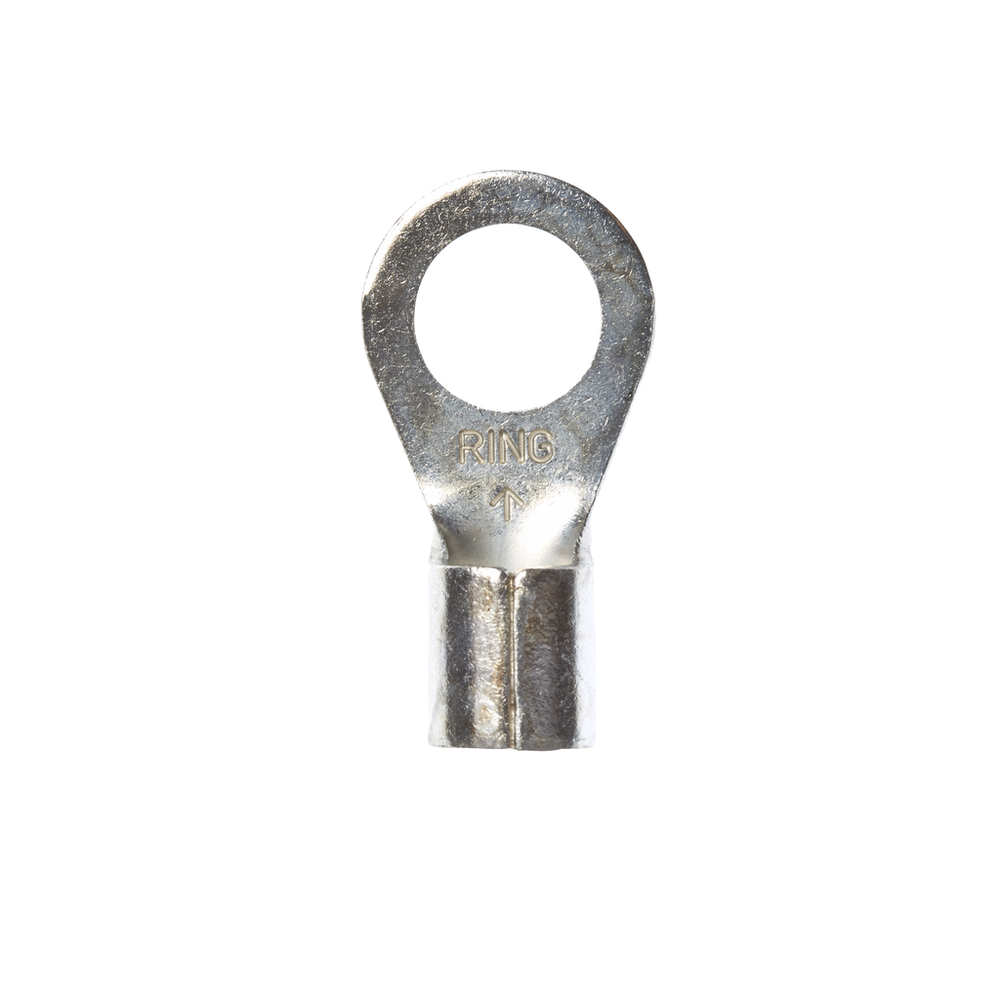

3M™ Scotchlok™ Ring Non-Insulated, 10/bottle, M6-38RX, standard-style ring tongue fits around the stud, 100/Case - 7010399933

Sold As: 10-Pack
SKU: 7010399933
MPN: 7010399933
For an accurate lead time please contact us
UPC: 10051128587000
3M ID: 80611458458
5 Digit UPC: 58700
$25.70 ($2.57 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Specifications

Country of OriginUnited States
Barrel StyleBrazed
Overall Width (Imperial) UOMin
Overall Length (Imperial)1.22
Terminal StyleStandard
Connection Width (Imperial)0.375
Maximum Operating Temperature (Celsius)175.0
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric) UOMmm
Insulation MaterialNon-insulated
Connection TypeCrimp
Ring TypeStandard
Minimum Conductor Size (Metric)13.3 mm²
Minimum Conductor Size (Imperial)6 AWG
Maximum Conductor Size (Imperial)6 AWG
Overall Width (Imperial)0.63
UL File NumberE23438
Overall Length (Imperial) UOMin
Terminal TypeRing
Maximum Conductor Size (Metric)13.3
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
Connection Width (Metric)9.525
