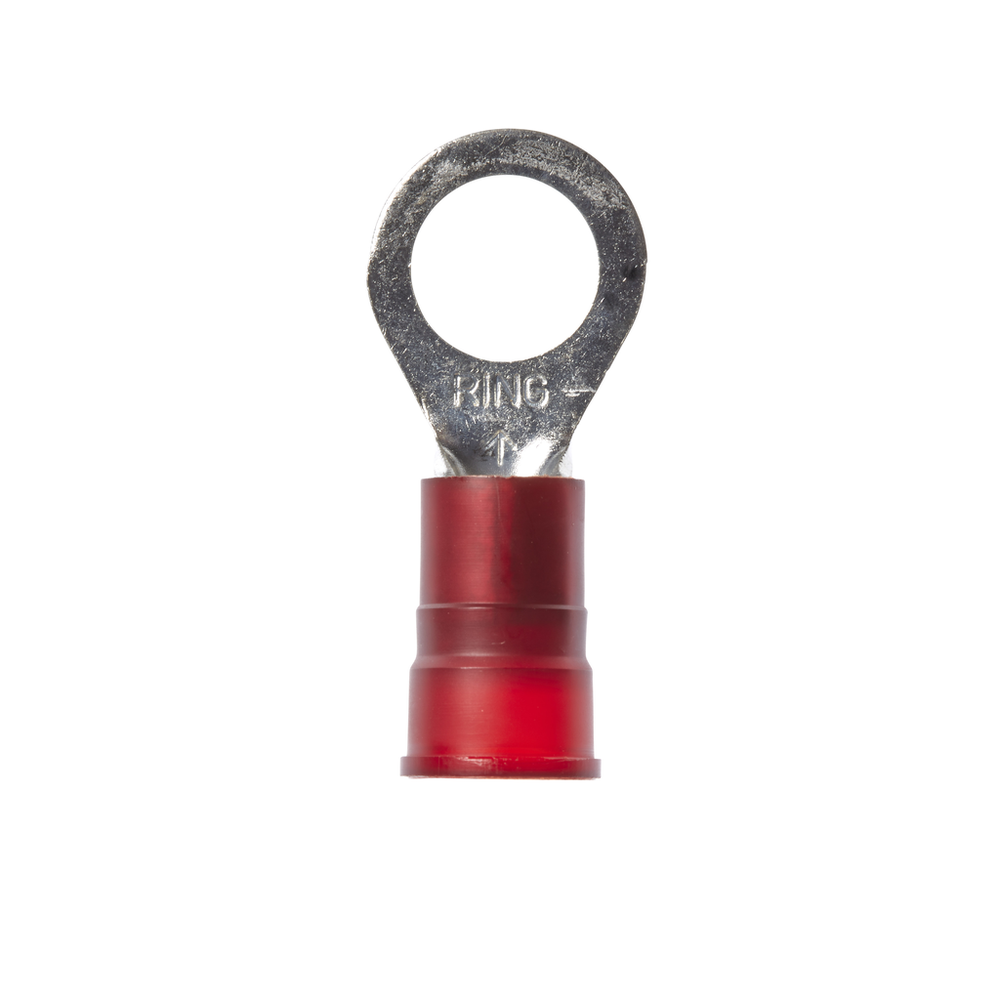

3M™ Scotchlok™ Ring Nylon Insulated, 10/bottle, MN8-38RX, standard-style ring tongue fits around the stud, 100/Case - 7010319713

Sold As: 10-Pack
SKU: 7010319713
MPN: 7010319713
For an accurate lead time please contact us
UPC: 10051128586393
3M ID: 80611457849
5 Digit UPC: 58639
$15.96 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Specifications

Country of OriginUnited States
Barrel Length (Imperial)0.39 Inch
Overall Length (Imperial)1.38
Maximum Conductor Size (Metric)8.37
Overall Width (Imperial)0.59
UL File NumberE23438
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Recommended Voltage Rating600.0
Connection TypeCrimp
Connection Width (Imperial)0.375
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)8 AWG
Ring TypeStandard
Maximum Operating Temperature (Celsius) UOMDegree
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Minimum Conductor Size (Imperial)8 AWG
Maximum Voltage Rating600 to 1000 V
Terminal StyleStandard
Minimum Conductor Size (Metric)8.37 mm²
Overall Length (Imperial) UOMin
Connection Width (Metric)9.525
Connection Width (Metric) UOMmm
Terminal TypeRing
Insulation MaterialNylon
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial) UOMin
Barrel StyleBrazed Seam
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Celsius)105.0
