3M Products & Supplies

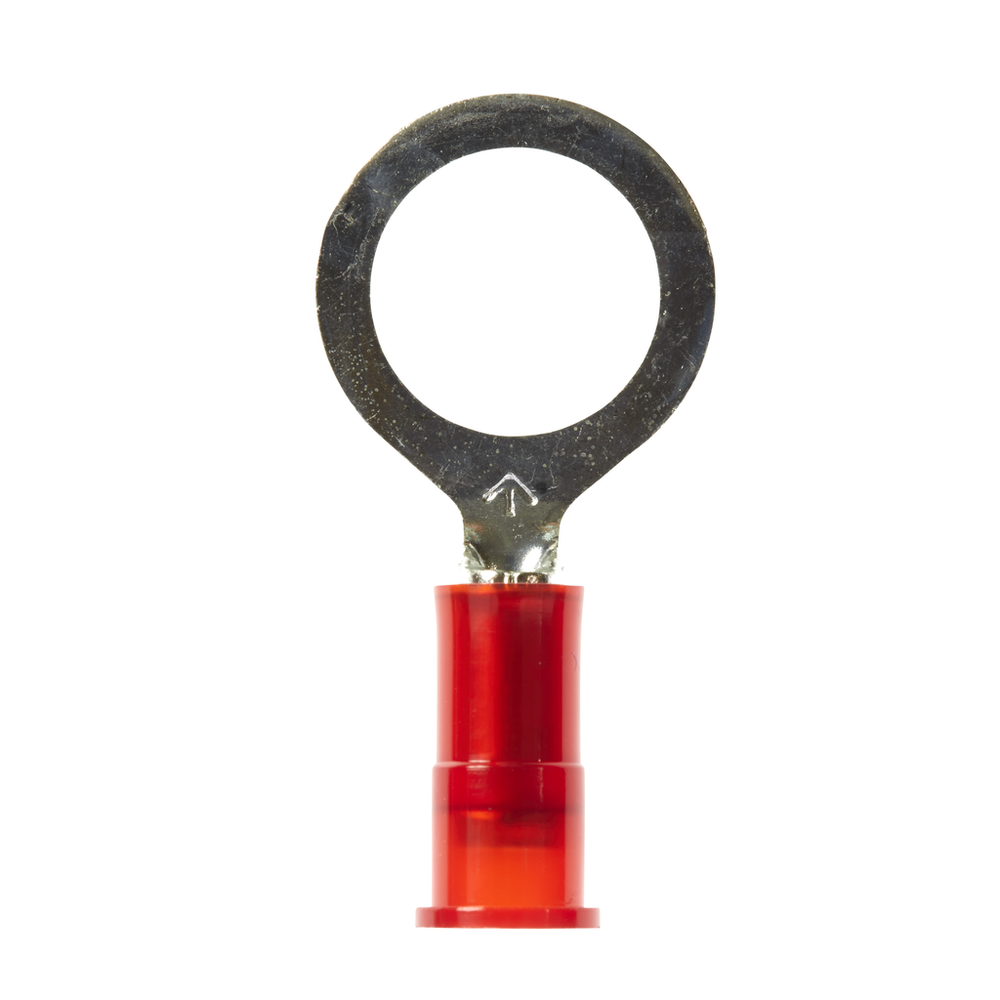

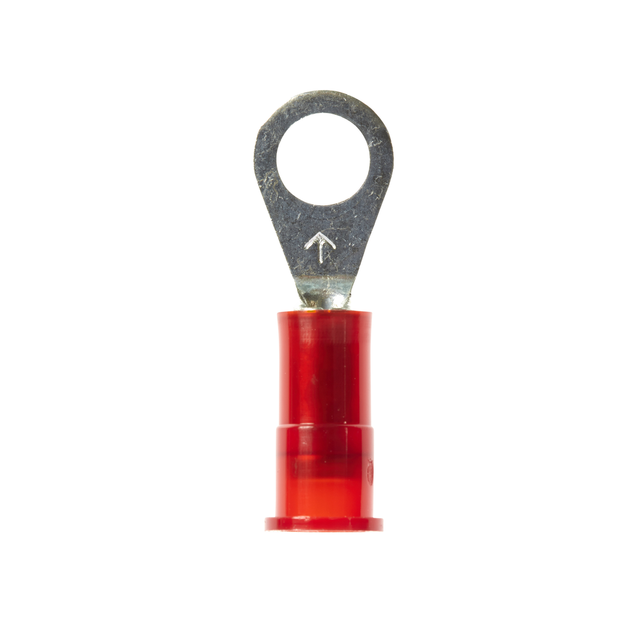

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-38RX, standard-style ring tongue fits around the stud, 500/Case - 7100165298

Sold As: 500-Pack
SKU: 7100165298
MPN: 7100165298
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589465
3M ID: 80611465925
5 Digit UPC: 58946
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Terminal TypeRing
Minimum Conductor Size (Metric)0.326 mm²
Overall Length (Imperial)1.12
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Connection Width (Imperial) UOMin
Ring TypeStandard
Maximum Recommended Voltage Rating UOMV
Connection Width (Imperial)0.375
Overall Width (Imperial)0.56
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPlastic
Minimum Conductor Size (Imperial)22 AWG
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)18 AWG
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Metric)0.823
Operating Temperature Range (Celsius)-40 °C to 105 °C
UL File NumberE23438
Maximum Voltage Rating600 to 1000 V
Connection Width (Metric)9.525
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Barrel StyleButted
Connection Width (Metric) UOMmm
