3M Products & Supplies

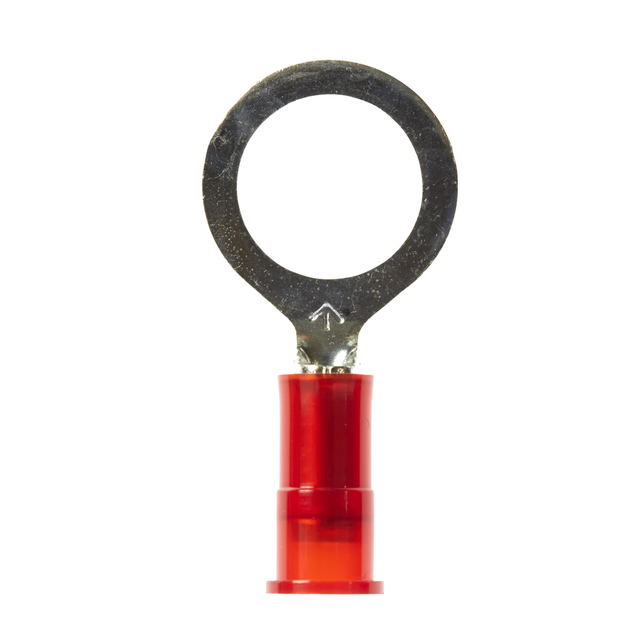

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-14R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133407

Sold As: 100-Pack
SKU: 7000133407
MPN: 7000133407
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589441
3M ID: 80611465909
5 Digit UPC: 58944
$123.62 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)1.07
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Connection Width (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)0.823
Maximum Recommended Voltage Rating600.0
MaterialPlastic
Overall Length (Metric)27.17
Ring TypeStandard
Minimum Conductor Size (Imperial)22 AWG
Maximum Conductor Size (Imperial)18 AWG
Overall Width (Imperial)0.47
Connection Width (Metric) UOMmm
Insulation MaterialNylon
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Terminal StyleStandard
Terminal TypeRing
Connection Width (Metric)6.35
Maximum Recommended Voltage Rating UOMV
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Maximum Voltage Rating600 to 1000 V
Connection Width (Imperial)0.25
UL File NumberE23438
Barrel StyleButted
Maximum Operating Temperature (Celsius)105.0
Product ColorRed
Maximum Operating Temperature (Celsius) UOMDegree
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
