3M Products & Supplies

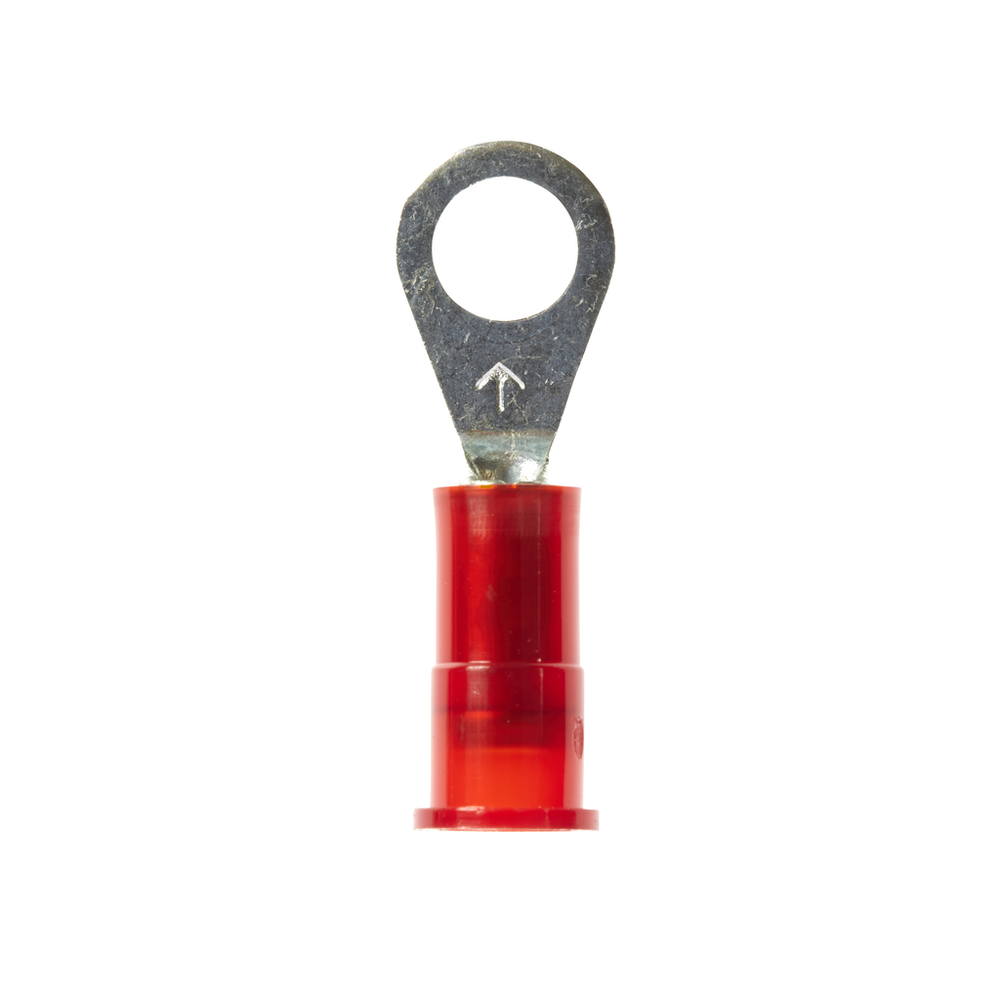

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-6R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133271

Sold As: 100-Pack
SKU: 7000133271
MPN: 7000133271
For an accurate lead time please contact us
UPC: 00051128586426
3M ID: 80611457872
5 Digit UPC: 58642
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Voltage Rating600 to 1000 V
Overall Width (Imperial) UOMin
Connection Width (Metric)3.5
Barrel StyleButted
Connection Width (Imperial)0.138
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)0.25
Overall Length (Imperial)0.79
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Overall Length (Metric)20.06
Insulation MaterialNylon
Overall Length (Metric) UOMmm
Ring TypeStandard
Minimum Conductor Size (Imperial)22 AWG
Terminal TypeRing
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Width (Metric) UOMmm
Minimum Conductor Size (Metric)0.326 mm²
UL File NumberE23438
Overall Width (Metric)6.35
Product ColorRed
Connection Width (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Celsius)105.0
Terminal StyleStandard
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
MaterialPlastic
