3M Products & Supplies

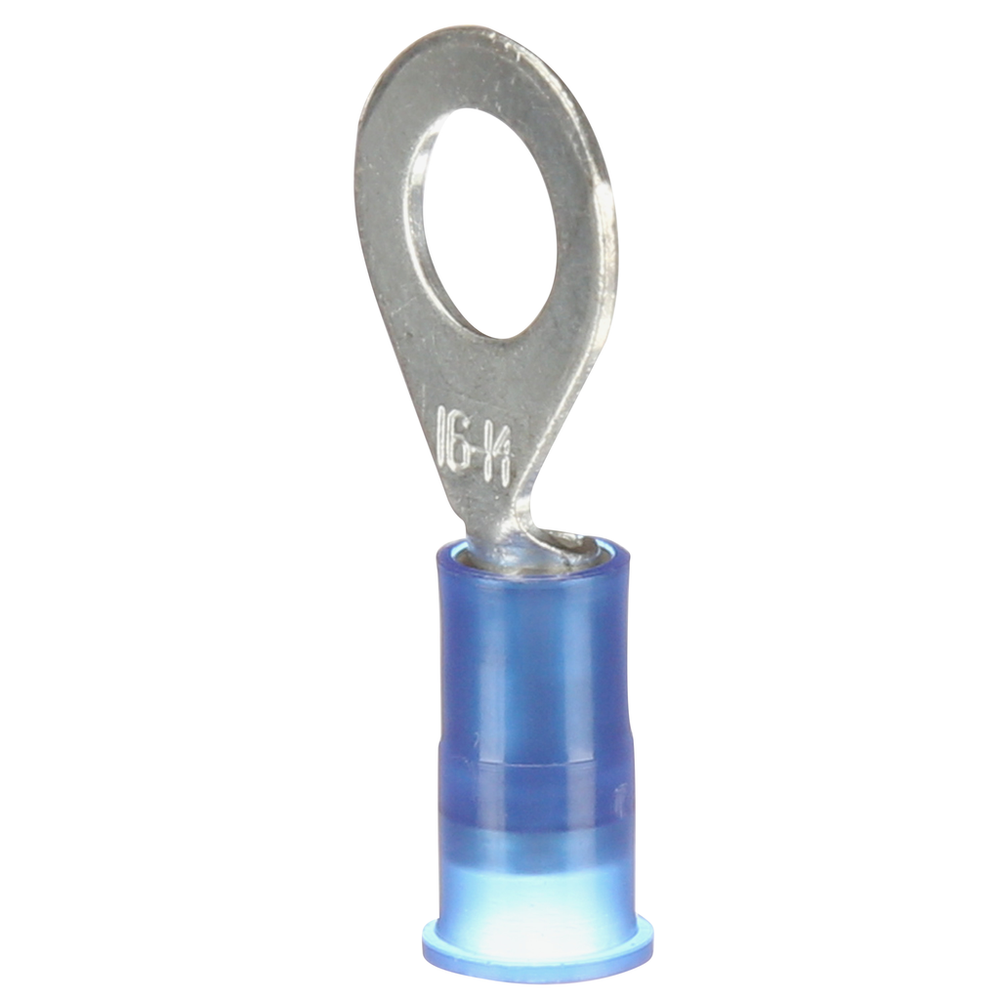

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-6R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133281

Sold As: 100-Pack
SKU: 7000133281
MPN: 7000133281
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586617
3M ID: 80611458060
5 Digit UPC: 58661
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.25
Ring TypeStandard
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Length (Imperial)0.81
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial) UOMin
Barrel StyleButted
Overall Width (Metric)6.35
Terminal TypeRing
Connection Width (Metric)3.5
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.138
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
UL File NumberE23438
Overall Width (Imperial) UOMin
Maximum Voltage Rating600 to 1000 V
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
Overall Length (Metric)20.57
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Metric)1.31 mm²
MaterialPlastic
Product ColorBlue
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
Connection Width (Metric) UOMmm
Insulation MaterialNylon
Overall Width (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
