3M Products & Supplies

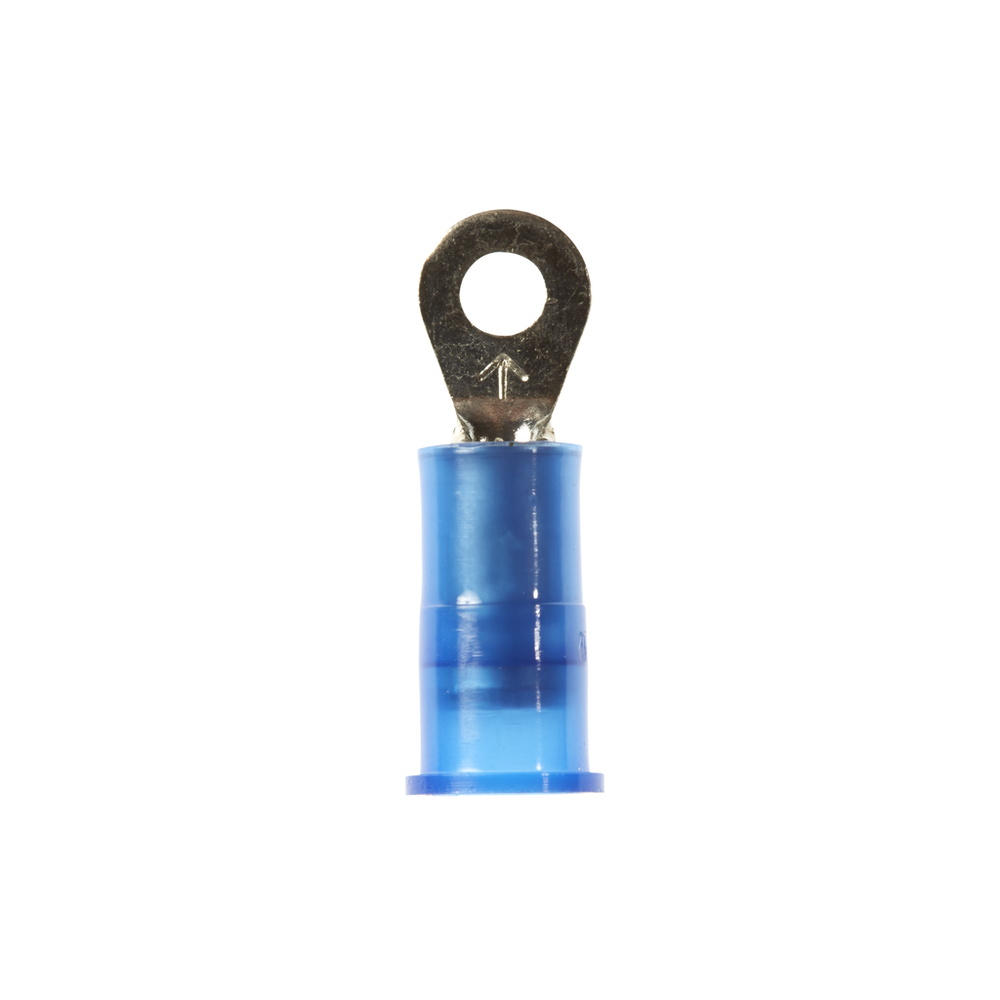

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-4R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133413

Sold As: 500-Pack
SKU: 7000133413
MPN: 7000133413
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589625
3M ID: 80611466089
5 Digit UPC: 58962
$561.87 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Barrel StyleButted
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.08
Maximum Recommended Voltage Rating600.0
Overall Width (Metric)6.35
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
MaterialPlastic
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric)2.845
Overall Length (Metric)20.57
Maximum Operating Temperature (Celsius)105.0
Insulation MaterialNylon
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial)0.25
Connection Width (Metric) UOMmm
Terminal TypeRing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)0.81
Overall Length (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.112
Ring TypeStandard
Product ColorBlue
Maximum Voltage Rating600 to 1000 V
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial) UOMin
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Operating Temperature Range (Celsius)-40 °C to 105 °C
Terminal StyleStandard
