3M Products & Supplies

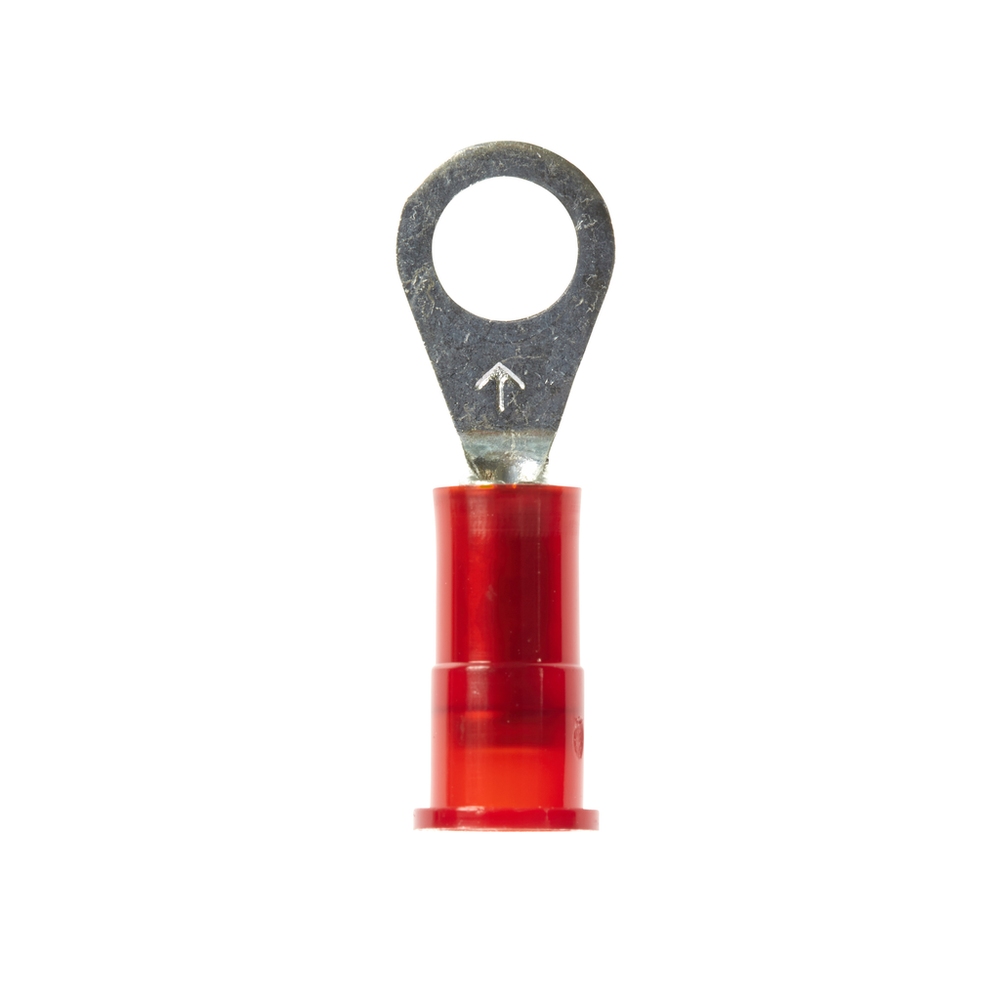

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-516R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133408

Sold As: 500-Pack
SKU: 7000133408
MPN: 7000133408
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589458
3M ID: 80611465917
5 Digit UPC: 58945
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial) UOMin
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Imperial)0.315
Connection Width (Metric)8.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Insulation MaterialNylon
Product ColorRed
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial)1.07
Maximum Recommended Voltage Rating UOMV
Overall Width (Imperial)0.47
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
Overall Length (Metric)27.17
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Metric) UOMmm
Overall Width (Imperial) UOMin
MaterialPlastic
Maximum Recommended Voltage Rating600.0
Barrel StyleButted
Overall Length (Metric) UOMmm
UL File NumberE23438
Terminal TypeRing
Overall Width (Metric)11.93
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Metric)0.823
Maximum Voltage Rating600 to 1000 V
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Ring TypeStandard
