3M Products & Supplies

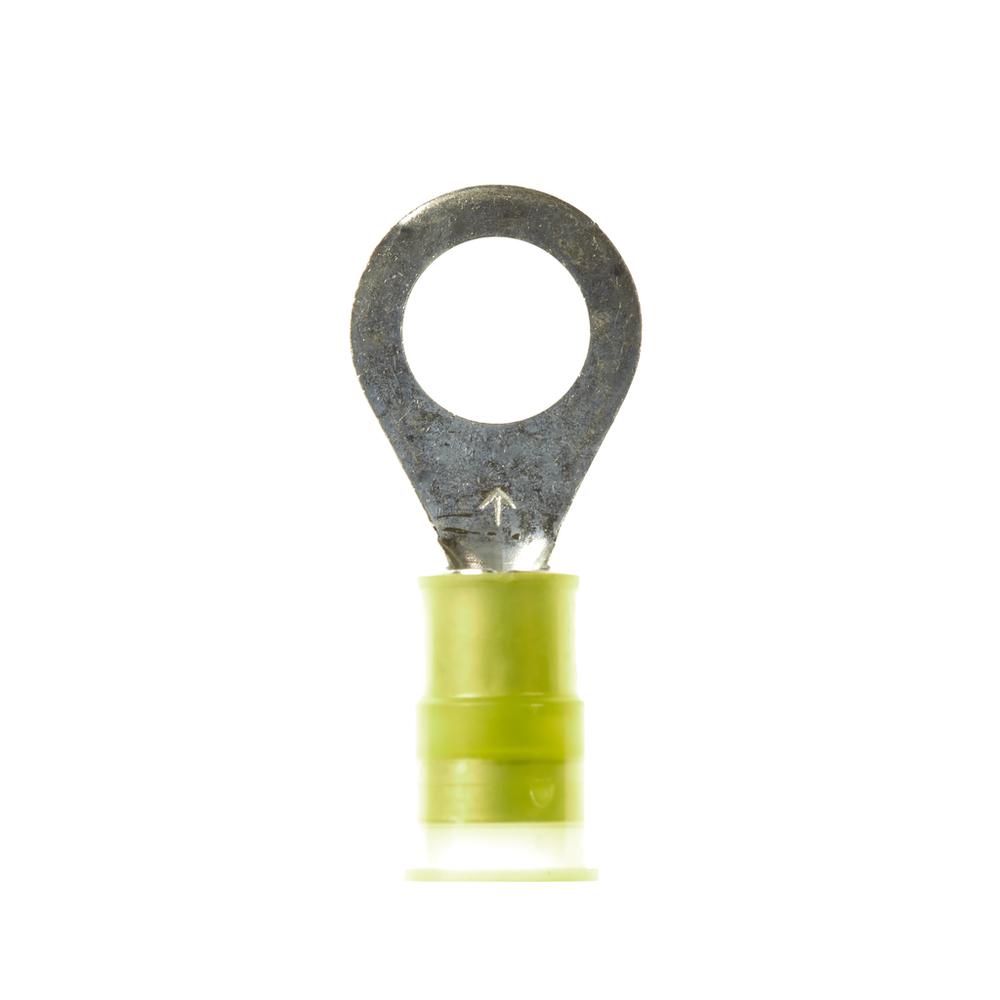

3M™ Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-516R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133422

Sold As: 500-Pack
SKU: 7000133422
MPN: 7000133422
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589847
3M ID: 80611466303
5 Digit UPC: 58984
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Conductor Size (Metric)5.26
Connection Width (Imperial)0.315
Terminal TypeRing
Overall Length (Metric)32.0
Maximum Recommended Voltage Rating600.0
Overall Length (Metric) UOMmm
Overall Width (Imperial) UOMin
MaterialPlastic
Connection Width (Metric) UOMmm
Product ColorYellow
Insulation MaterialNylon
Maximum Conductor Size (Imperial)10 AWG
UL File NumberE23438
Connection Width (Metric)8.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Maximum Voltage Rating600 to 1000 V
Overall Length (Imperial)1.26
Connection Width (Imperial) UOMin
Terminal StyleStandard
Minimum Conductor Size (Metric)3.31 mm²
Ring TypeStandard
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial)0.53
Maximum Recommended Voltage Rating UOMV
Overall Width (Metric)13.46
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Barrel StyleButted
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
