3M Products & Supplies

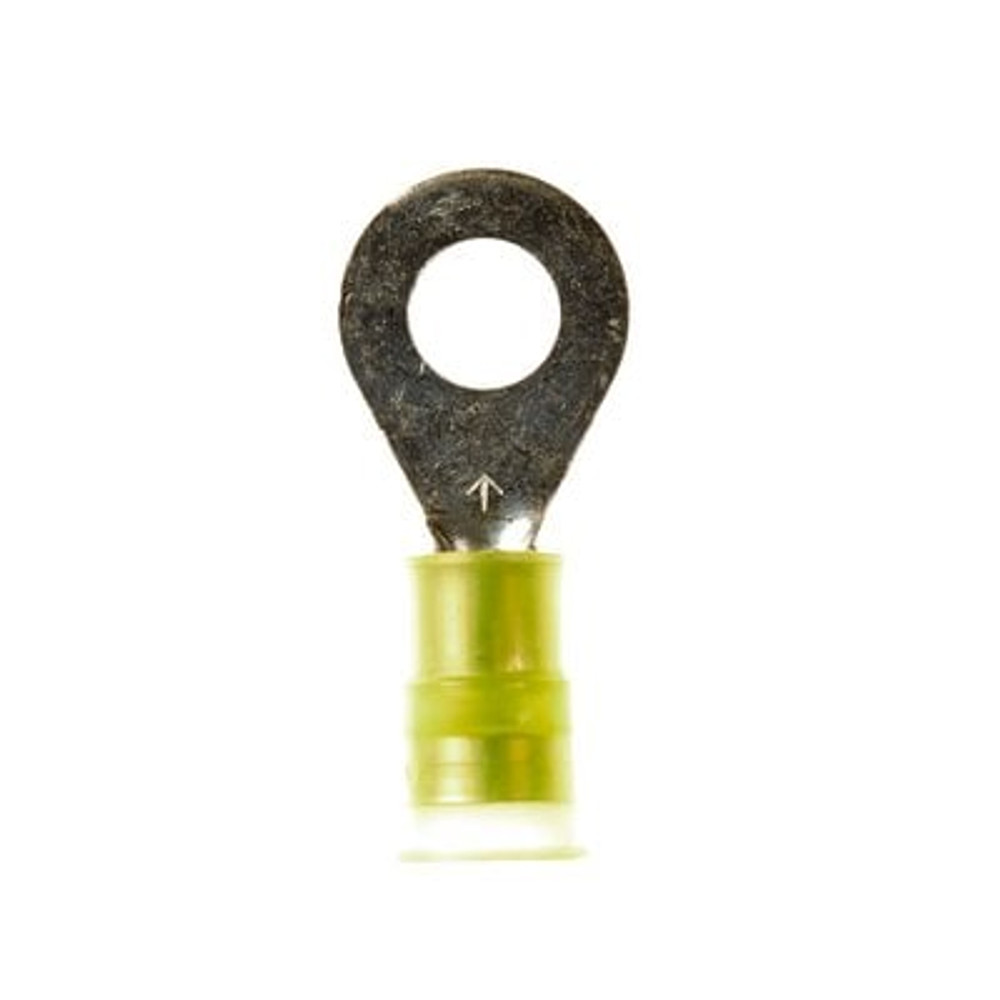

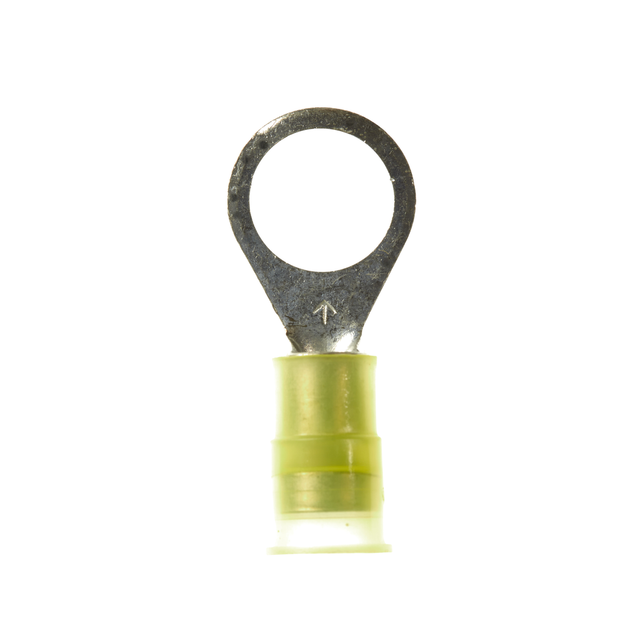

3M™ Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-14R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133308

Sold As: 50-Pack
SKU: 7000133308
MPN: 7000133308
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587157
3M ID: 80611458607
5 Digit UPC: 58715
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Country of OriginUnited States
Overall Width (Metric) UOMmm
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius)105.0
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)32.0
Ring TypeStandard
Product ColorYellow
MaterialPlastic
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Width (Imperial)0.53
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature Range (Celsius)-40 °C to 105 °C
Insulation MaterialNylon
Maximum Voltage Rating600 to 1000 V
Barrel StyleButted
Overall Length (Imperial) UOMin
Overall Width (Metric)13.46
Maximum Conductor Size (Metric)5.26
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Maximum Recommended Voltage Rating600.0
Overall Length (Imperial)1.26
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Imperial)0.25
Terminal TypeRing
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Metric) UOMmm
Terminal StyleStandard
Overall Width (Imperial) UOMin
